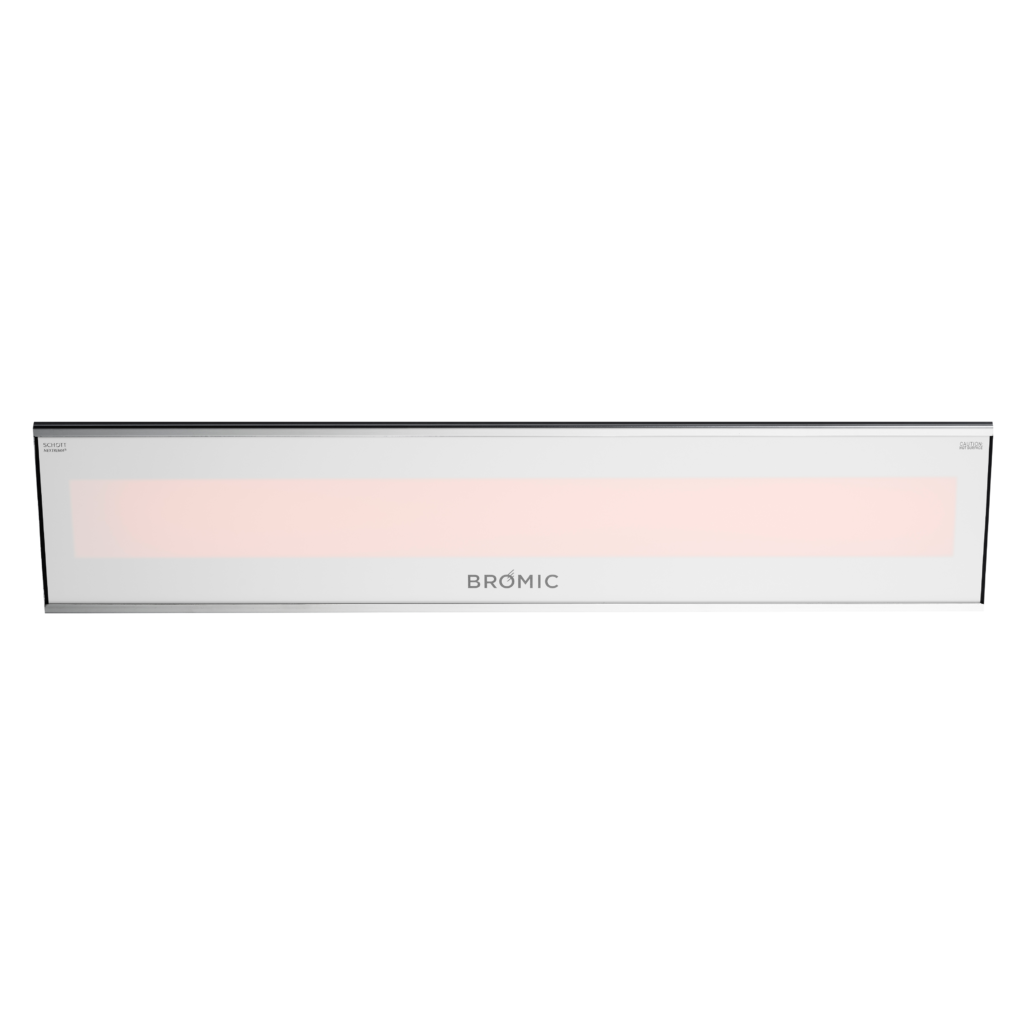

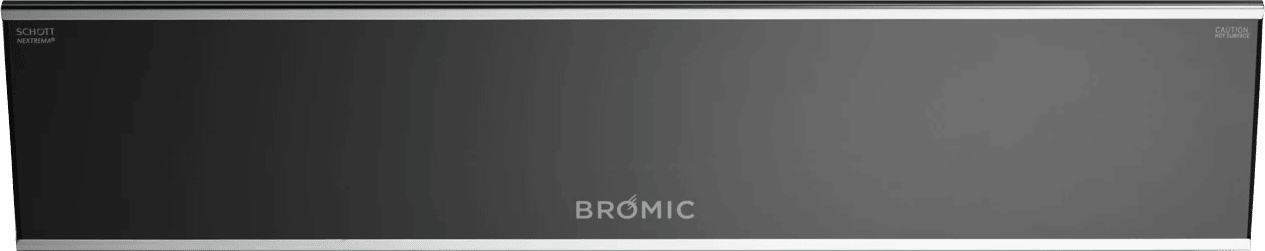

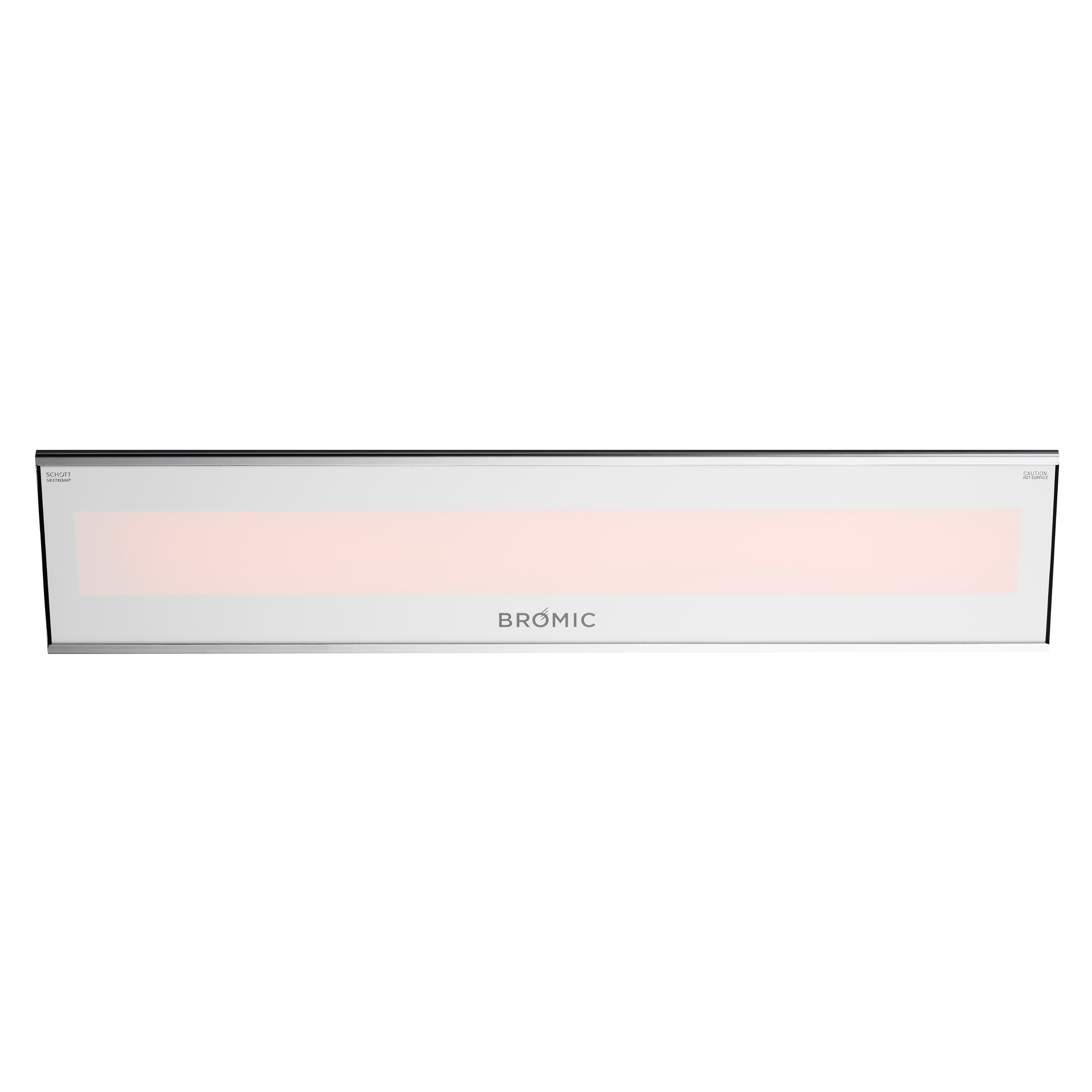

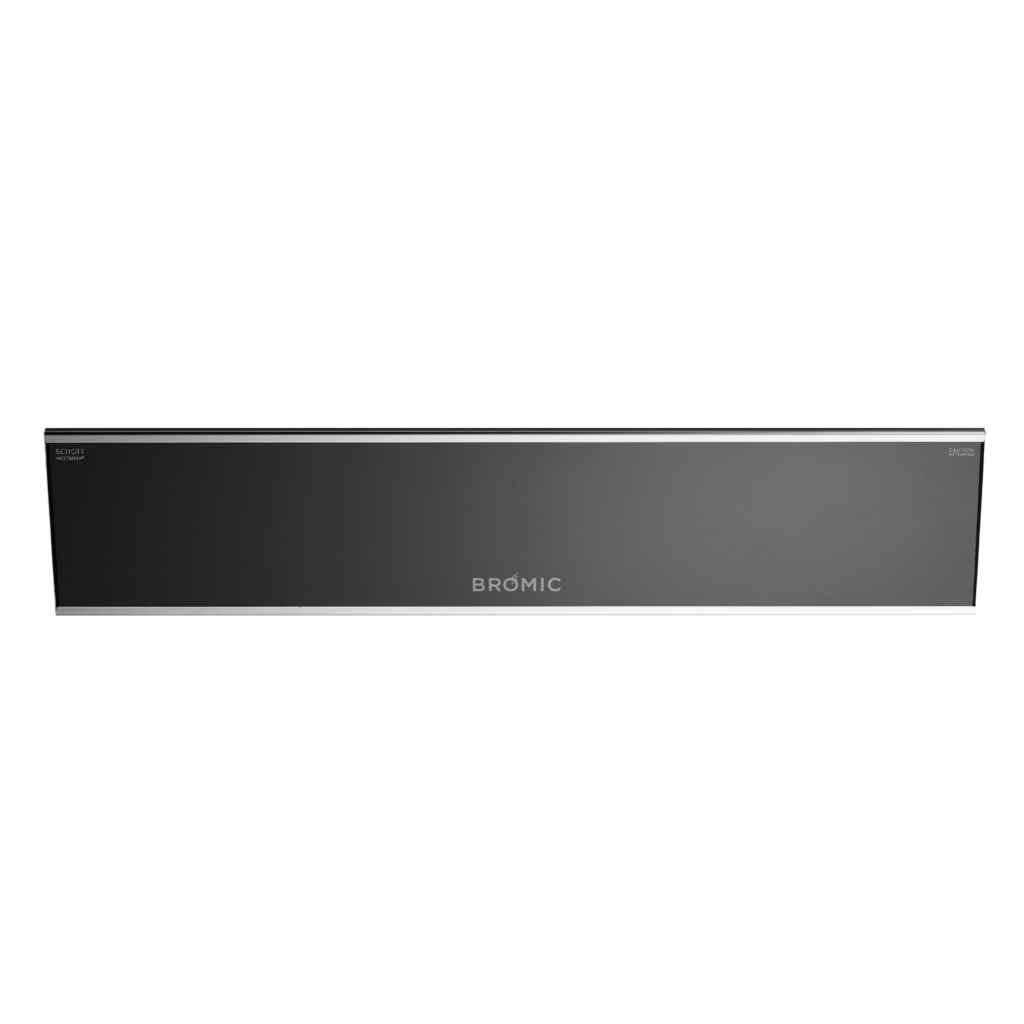

Platinum Smart-Heat™ Electric

The ultimate in seamless slim-line design. The award-winning Platinum Smart-Heat™ Electric heater series is specifically suited to seamlessly blend into low-clearance and design-focused spaces. Available in black or white with three power options and a wide array of ceiling, wall, and flush-mounting options.

Platinum Smart-Heat™ Electric

$1,861.00$2,490.00

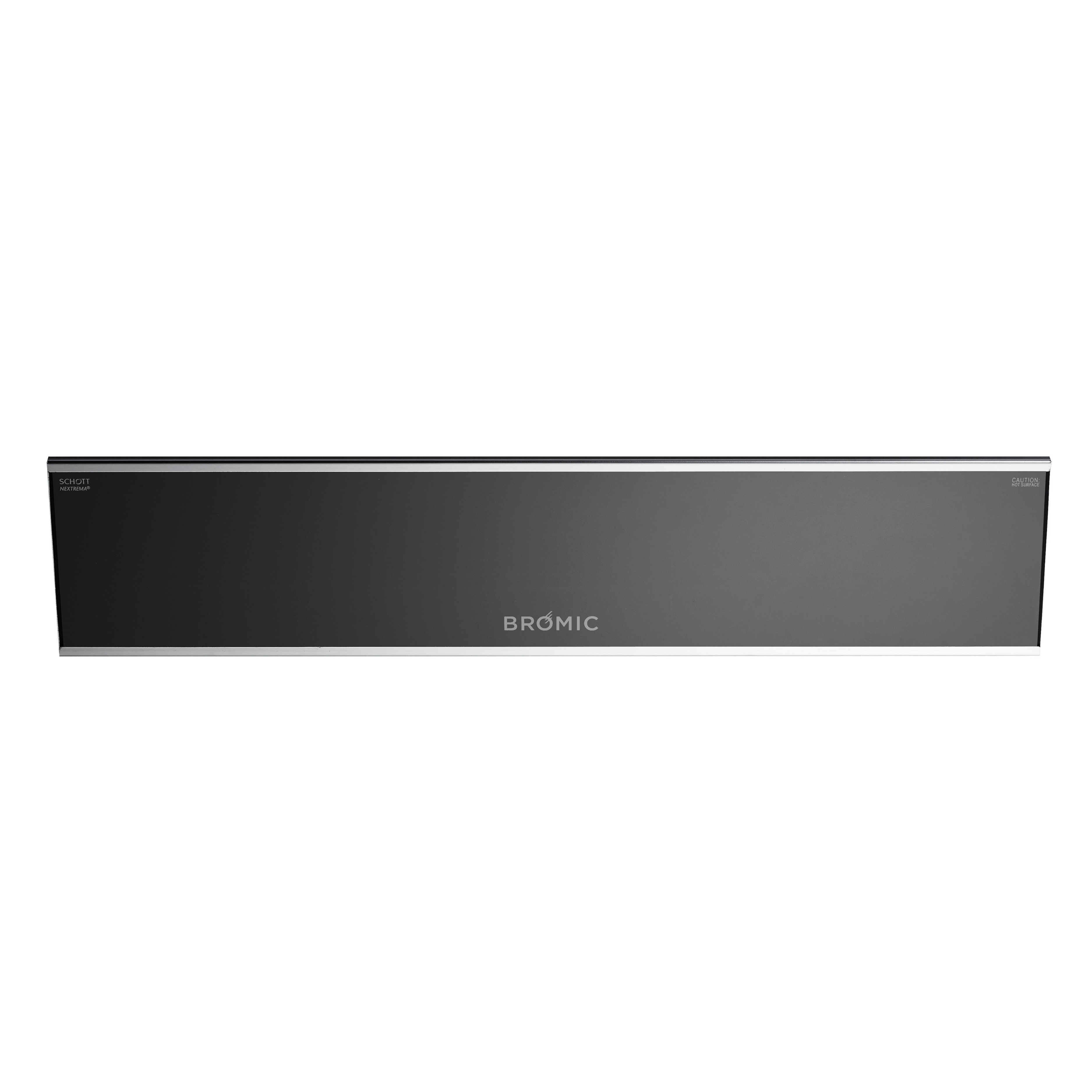

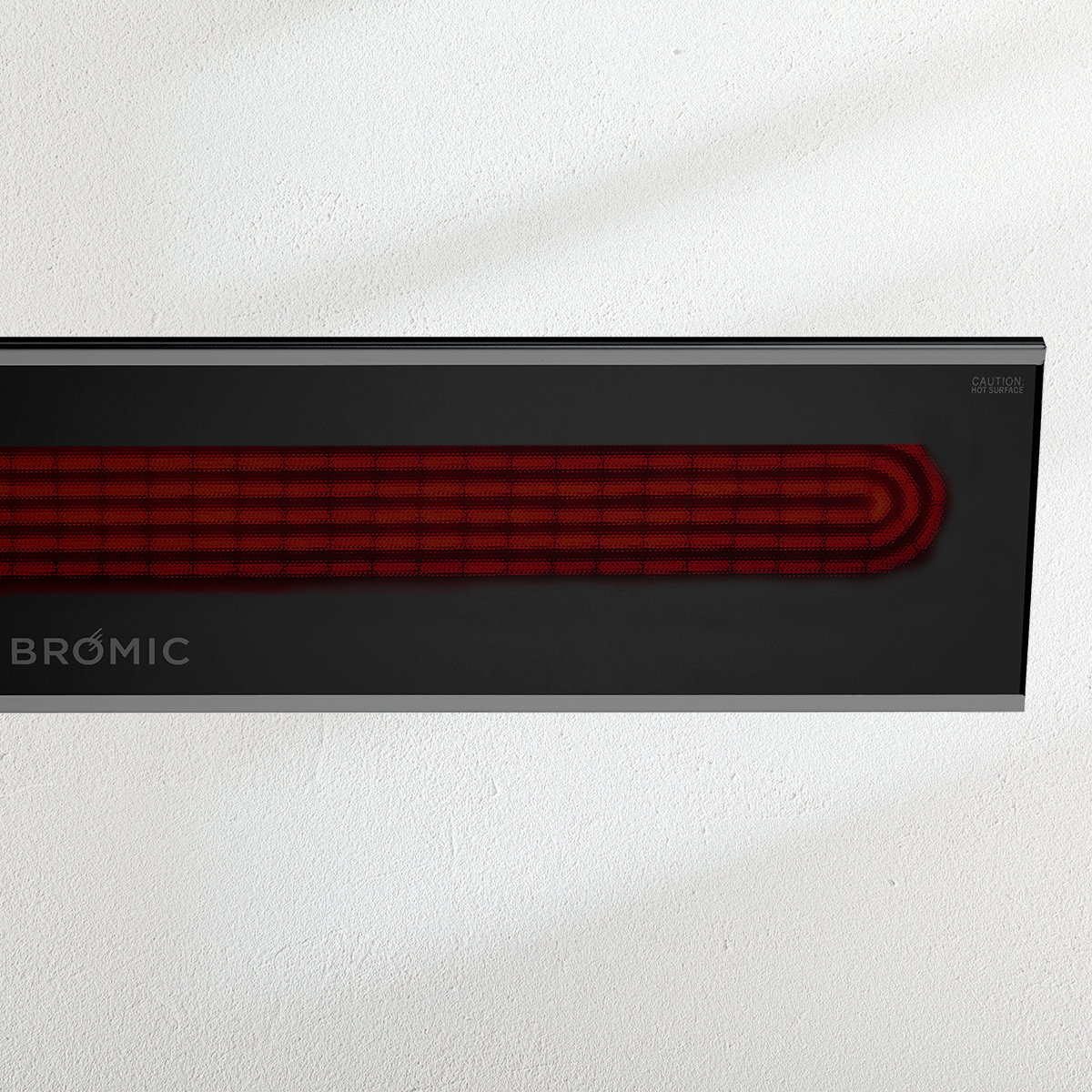

Looking for a heater that offers the most effective heating technology, an award-winning design and very little light emission? You found it. With its ultra-slim, high-quality 304 stainless steel chassis and Schott tinted ceramic-glass screens, the award-winning Platinum Smart-Heat™ Electric virtually disappears into its surroundings while delivering market-leading radiant heat output that will warm you and not the air – just like the sun.

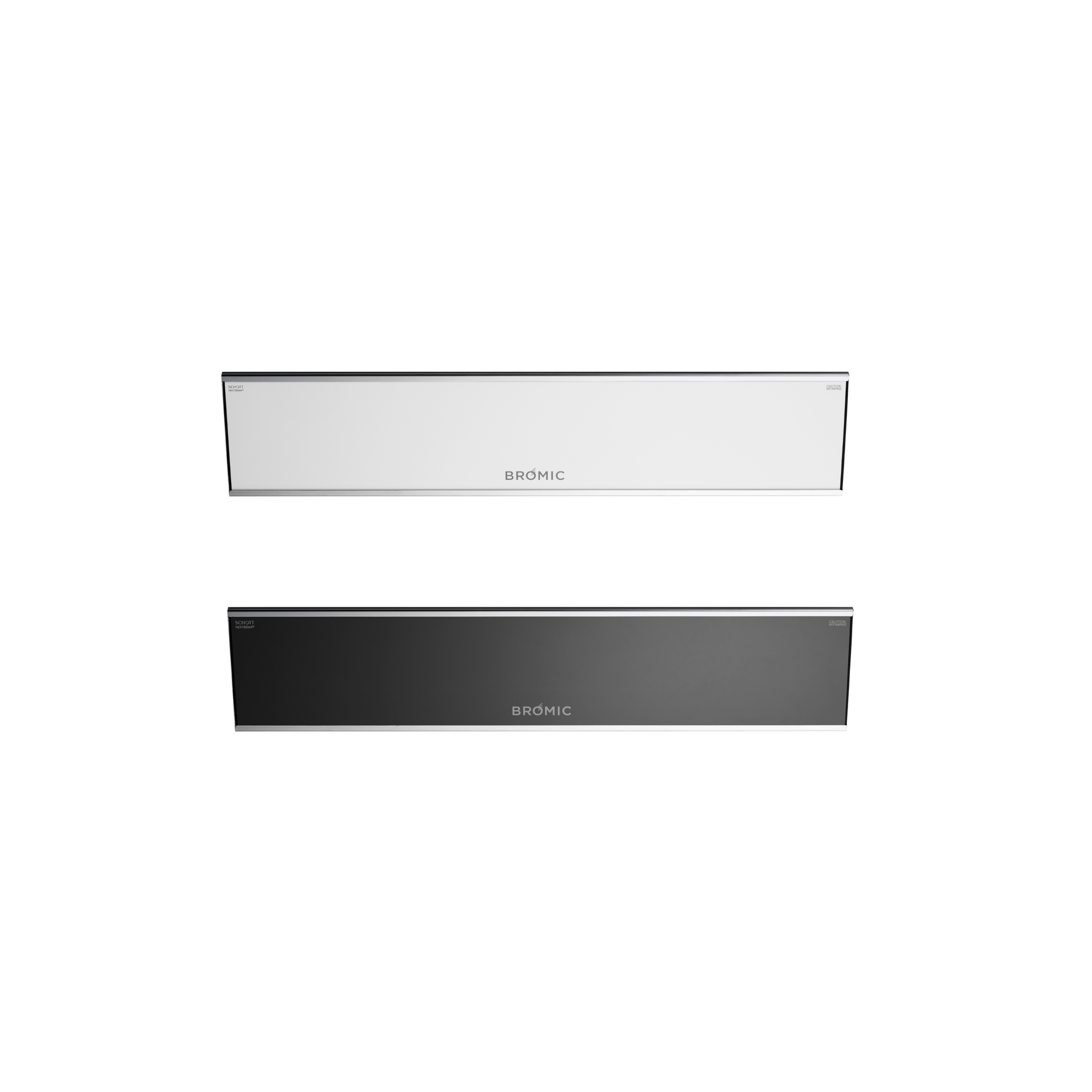

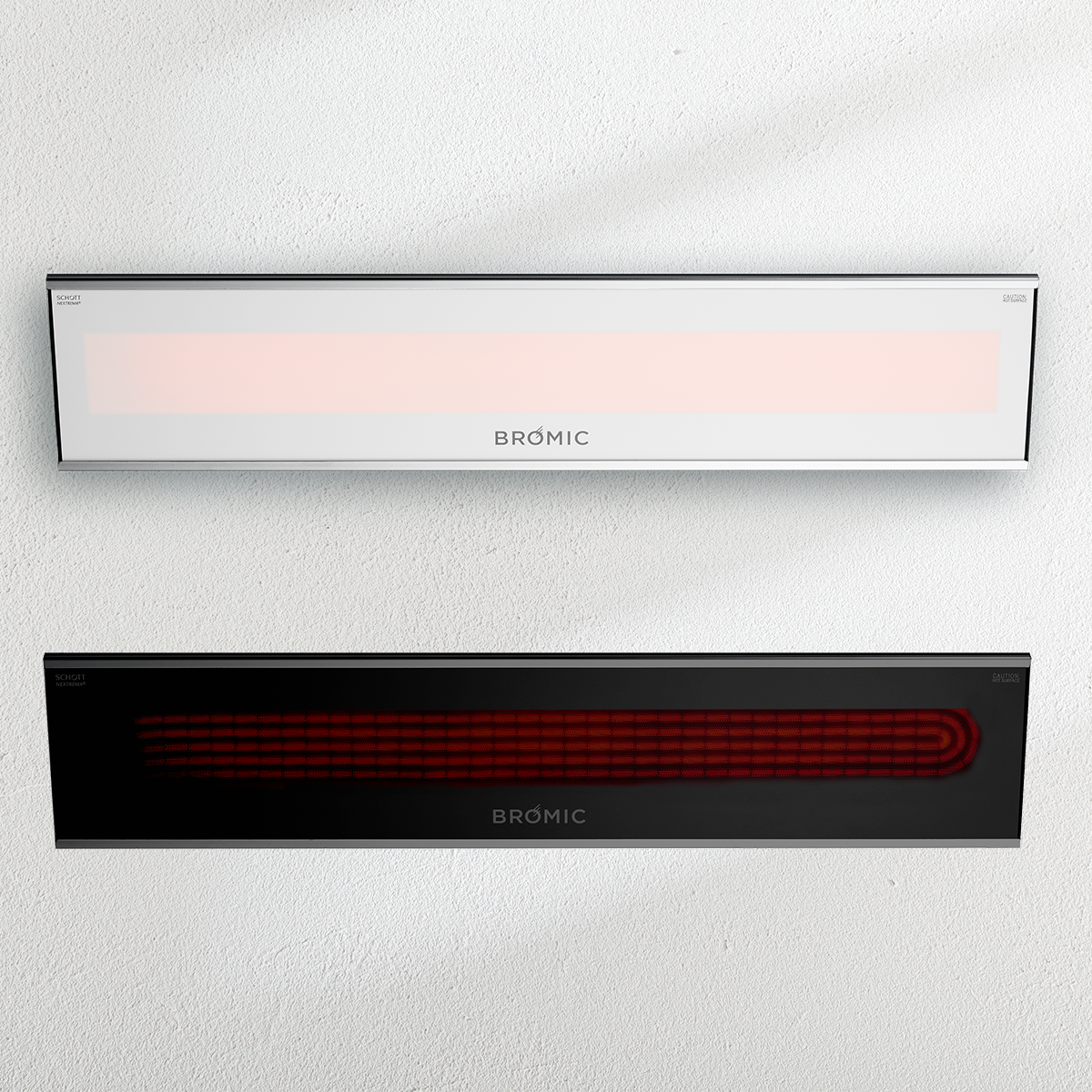

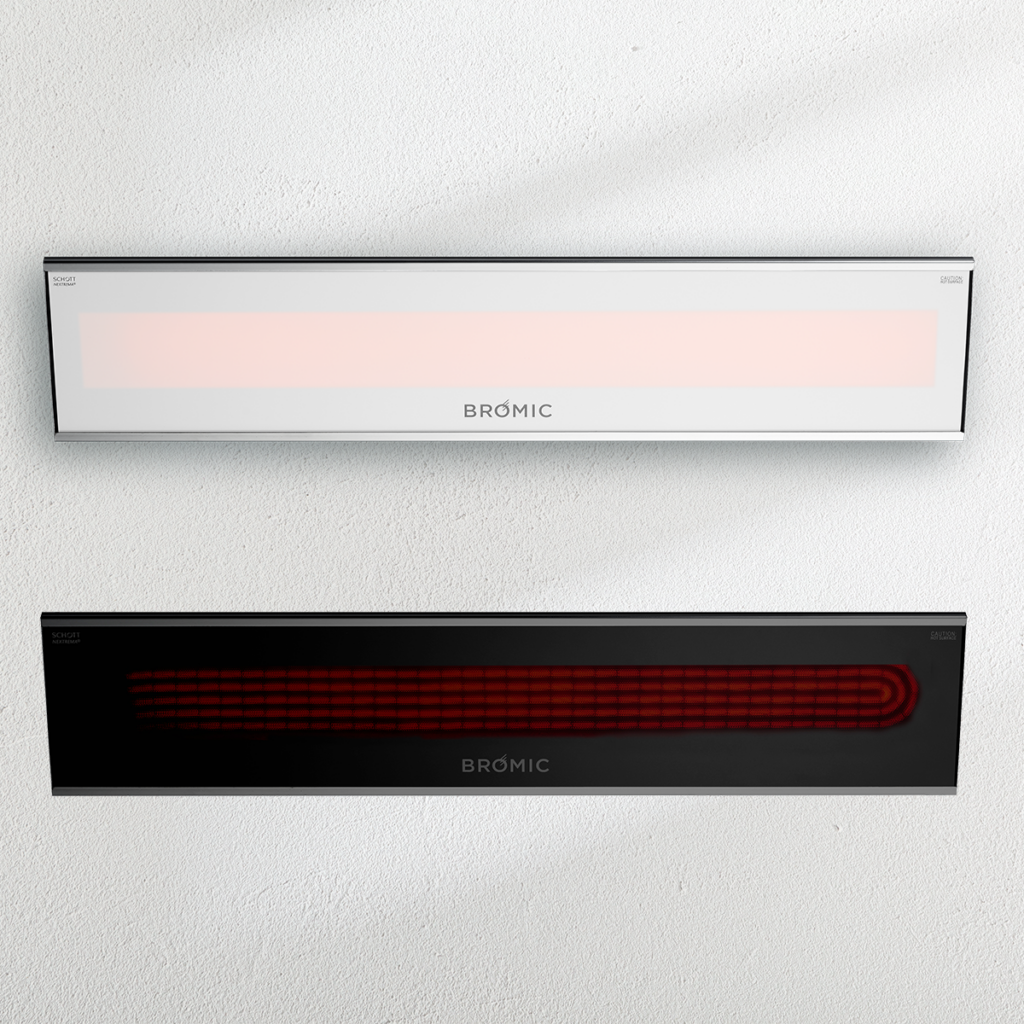

Available in both black and white and three sizes (2300W, 3400W and 4500W), this premium heater was specifically designed for low-clearance, semi-enclosed spaces and can be mounted with minimal clearance requirements.

SKU: N/A Category:

Features & Benefits

Built with premium stainless-steel construction, complete with a sleek ceramic glass screen and a fully enclosed body, the Platinum Electric heater provides even heat distribution to outdoor spaces.

  • More
    Close
    Adjustable Mounting Brackets

    For efficient, directional heat distribution.

  • More
    Close
    Compact & Elegant Design

    Seamless integration into design-focused spaces.

  • More
    Close
    Slim-line Design

    For minimal vertical clearance requirements.

  • More
    Close
    Premium Stainless-Steel Construction

    Delivering longevity of use and aesthetic appeal

  • More
    Close
    Tinted Glass-Ceramic Fascia

    Spread heat evenly across any area while minimizing light emission.

  • More
    Close
    Set and forget

    Simple and easy to use, with single-switch activation and smart system compatibility.

Product Resources

Discover everything you need to know about the Platinum Electric heater series, from heat blooms and mounting options to detailed specifications and FAQs.

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

MODEL 2300W SERIES 2300W SERIES 3400W SERIES 3400W SERIES 4500W SERIES 4500W SERIES
FUEL TYPE ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC
COLOR BLACK WHITE BLACK WHITE BLACK WHITE
WEIGHT 17lbs 17lbs 22lbs 22lbs 33lbs 33lbs
MODEL # BH0320003 BH0320007 BH0320005 BH0320008 BH3622000 BH3622001
HEAT AREA 65ft2 65ft2 108ft2 108ft2 143ft2 143ft2
RATED CURRENT * 220-240V/9.6A
208V/11.1A
220-240V/9.6A
208V/11.1A
220-240V/14.2A
208V/16.3A
220-240V/14.2A
208V/16.3A
220-240V/18.8A
208V/21.6A
220-240V/18.8A
208V/21.6A
MINIMUM FLOOR CLEARANCE Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
Wall 72”
Ceiling 96”
APPROVAL CERTIFICATION Intertek ETL / cETL 5001799

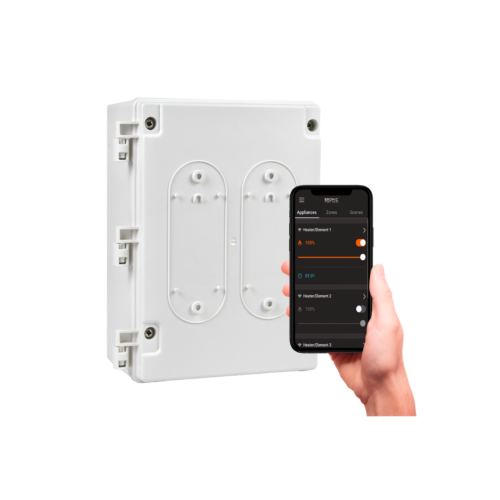

CONTROL OPTIONS 2300W SERIES 3400W SERIES 4500W SERIES

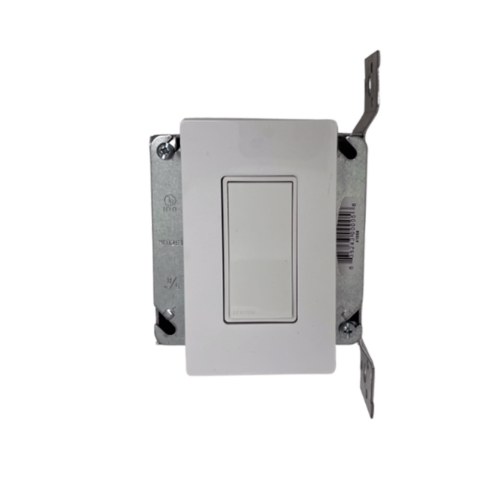

ON | OFF

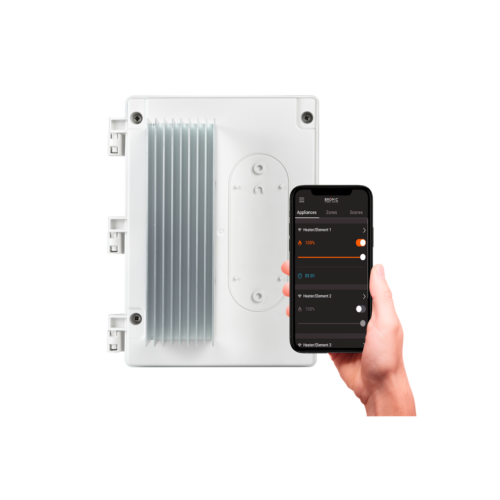

DIMMER REMOTE
MASTER REMOTE **

*Available in varying voltages: 220/240v and 208V.

**Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 100ft of heaters.

Downloads

Dimensions

Heat Blooms

Mounting Options

Clearances

Installation

Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.







Downloads

BIM & CAD Files

To download BIM & CAD files, fill out the form below:

FAQs

Do the Platinum Electric heaters come with a controller?

No, the controllers can be purchased as an additional accessory.

Can I install the Platinum Electric heater myself?

No, the heater must be installed by a licensed technician.

What is radiant heat?

Radiant heat works like the sun. Instead of heating the air around you, it heats people and objects. This makes radiant heat more effective as an outdoor heating source, as it is less likely to be affected by the wind.

Can the Platinum Electric Heater get wet?

Although our Platinum Electric heaters are made from premium 304 stainless steel and engineered for longevity, Bromic recommends that they are best mounted under cover and not directly exposed to rain, snow and salt mist to ensure they maintain their aesthetic appeal.

What mounting options are available?

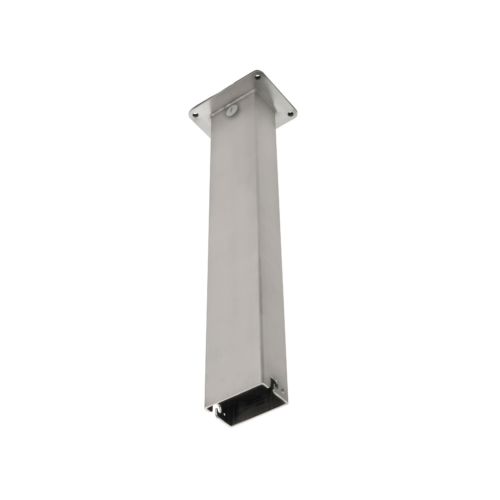

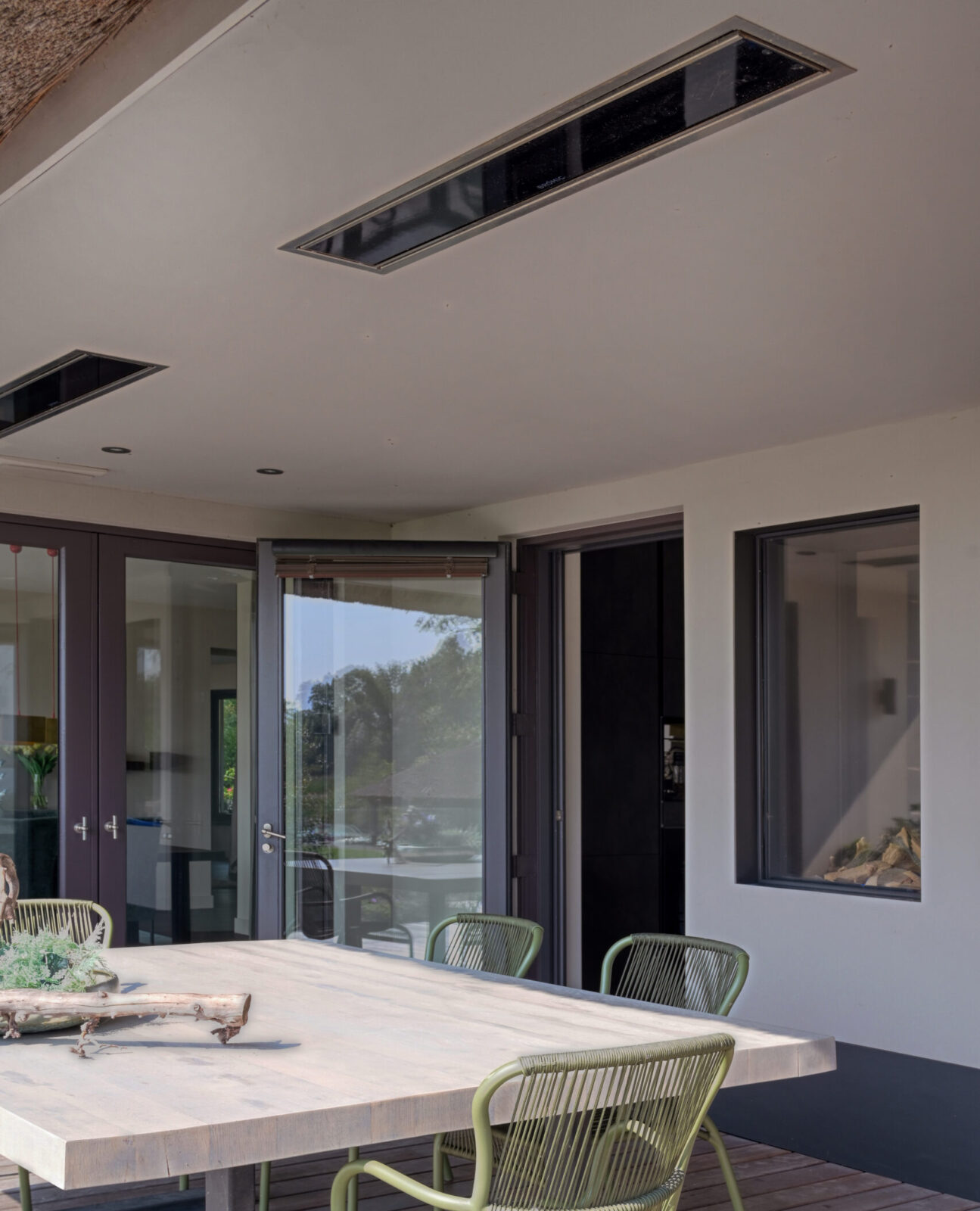

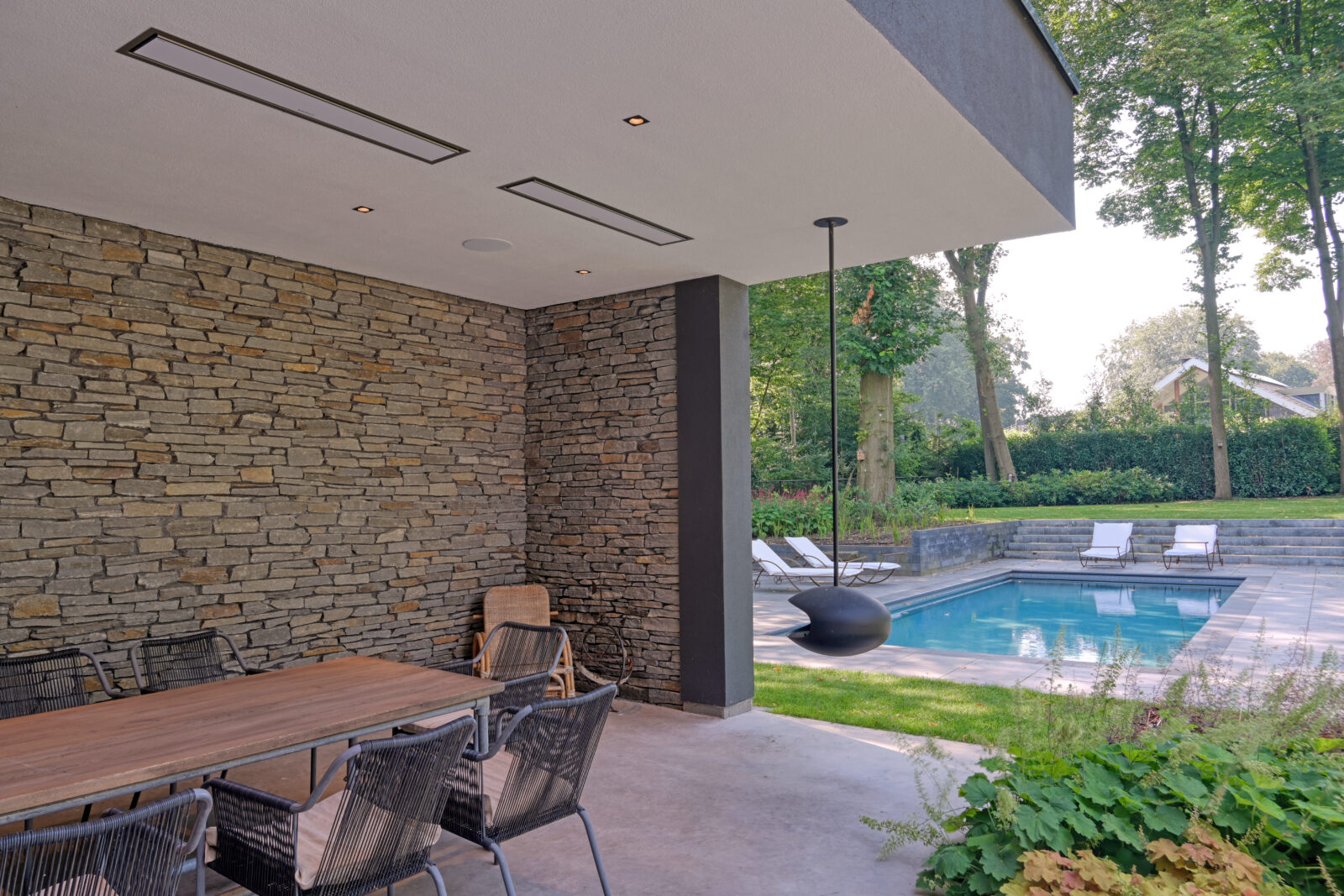

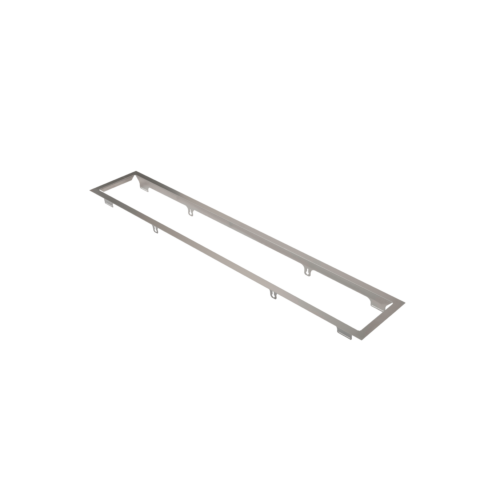

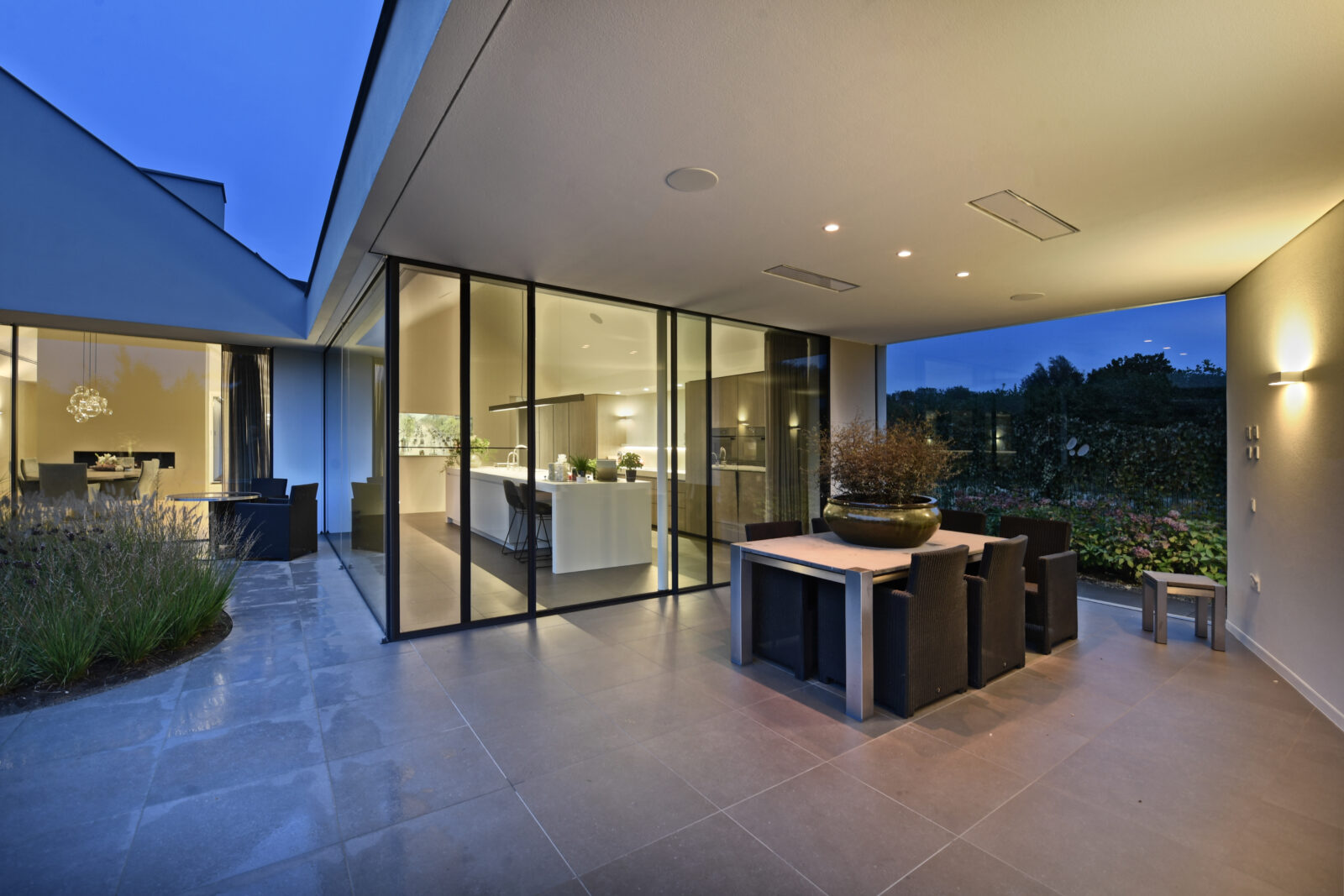

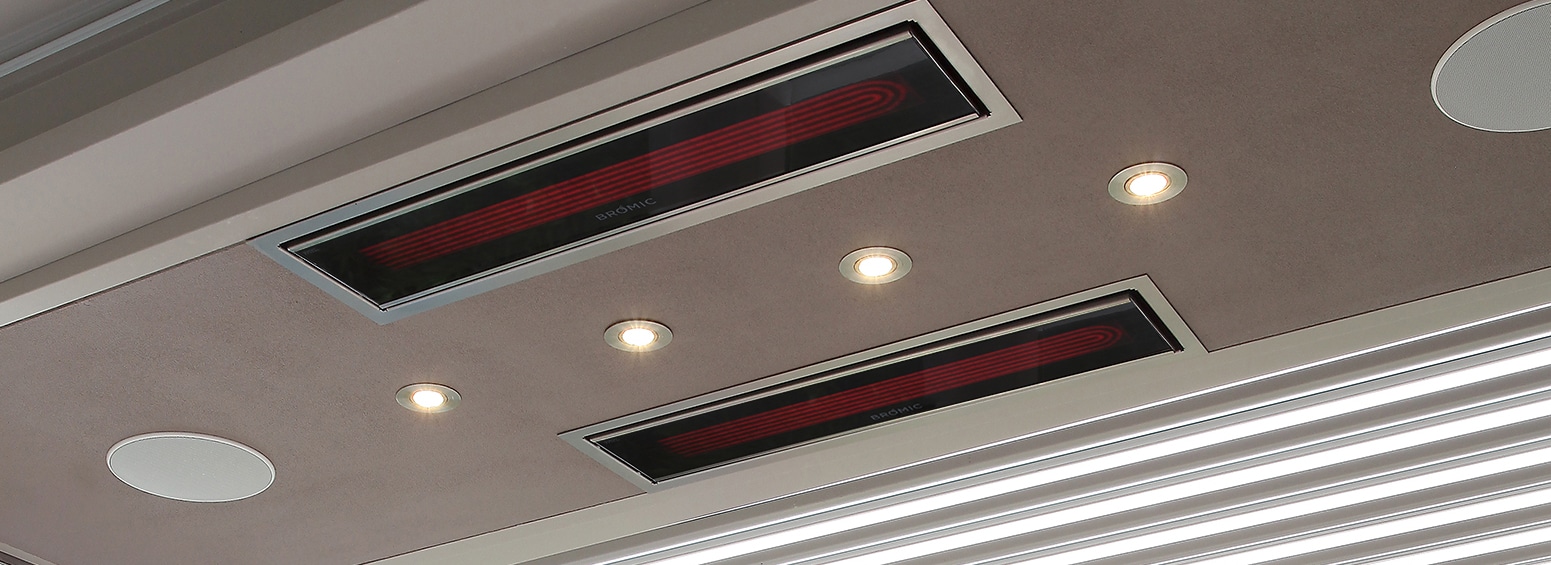

This slim electric heater can be either wall mounted, pole mounted or recessed into the ceiling. Each heater is supplied with an 8″ stainless steel pole. Recessing kits and longer poles for high ceilings can be ordered separately. Please refer to our instruction manual or contact our friendly design team to find out which installation and height is right for you.

Are Platinum Electric heaters suitable for boats & yachts?

Standard Platinum Electric heaters are not suitable for coastal and marine environments including on boats and yachts as 304 grade stainless-steel is susceptible to corrosion within these environments. Bromic does offer a marine grade Platinum Electric Marine heater that is constructed of 316 marine grade stainless-steel that is suitable for coastal and marine environments including installation aboard vessels. Learn more here: Weatherproof Outdoor Electric Heater

How many Platinum Electric heaters do I need?

The number of Platinum Electric heaters needed depends entirely on the size and layout of the space, as well as the size and wattage of the heaters you are installing. Let our heating experts create the perfect heat layout of your space by utilizing our Complimentary Design Service.

Do Platinum Electric heaters need ventilation?

The Platinum Electric heater series does not require ventilation as there are no harmful biproducts such as gasses released into the air. Please refer to the corresponding Installation Manual to ensure proper clearances are met for safe operation.

Are Platinum Electric heaters weather resistant?

Yes, Bromic’s Platinum Electric slim infrared heaters are designed to be weather resistant with a fully sealed heater body to protect internal elements. The heaters are constructed from premium 304 grade stainless steel. IP certified for outdoor use, making them durable and reliable, even in various weather conditions.

Can I use Platinum Electric heaters in an enclosed space?

The Platinum Electric outdoor heaters can be used in enclosed patios as they require no ventilation. Please refer to the corresponding Installation Manual to ensure proper clearances are met for safe operation.

What are the clearance requirements for Platinum Electric heaters?

Consult the product installation manual for specific clearance requirements, as these guidelines are crucial for safe and efficient operation. Generally, proper clearances are necessary to prevent hazards, ensure safety, and maintain the longevity of the heaters.

Are Platinum Electric heaters energy efficient?

In general, electric outdoor heaters are the most energy efficient option for outdoor heating. The energy consumption of Platinum heaters depends on the specific model and the heat output you require. Specific energy consumption figures can be found in the product specifications for each Platinum heater model.

Can I leave a Platinum Electric heater on all night?

While Bromic’s Platinum heaters are designed for extended outdoor use, it is generally not recommended to leave any outdoor heater on overnight for safety reasons. We recommend turning off the Platinum heaters when not in use and following the installation manuals for safe operation and maintenance. Afraid you will forget, check out Bromic’s control options.

What Our Clients Say

★ ★ ★ ★ ★

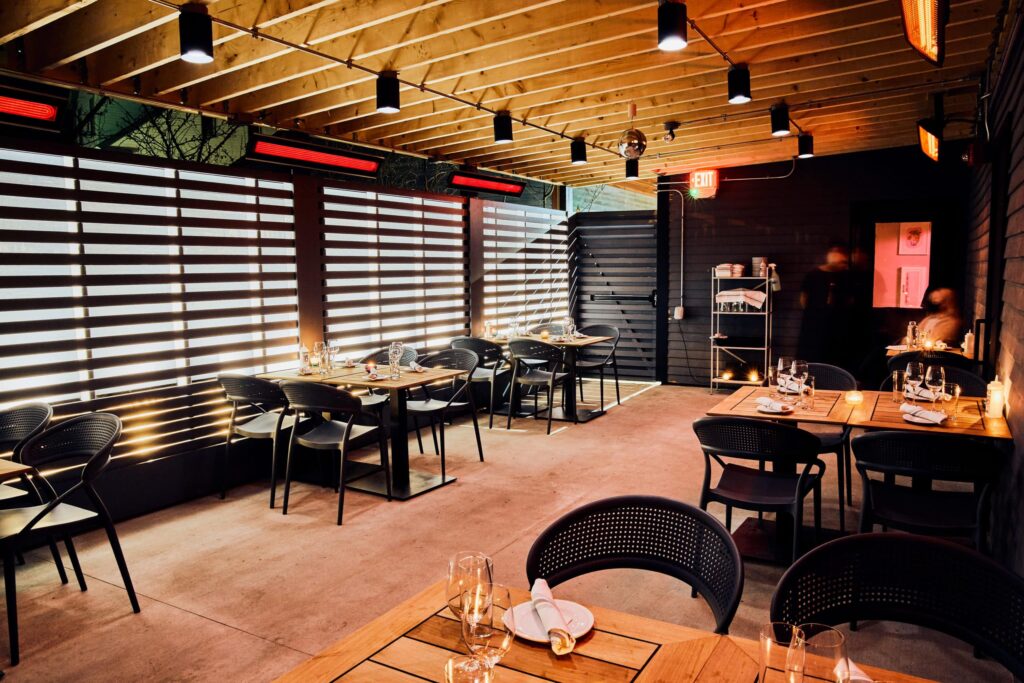

20 degrees Fahrenheit and we're outdoor dining! Serious customer service with design support. Bromic Heating almost single-handedly saved restaurants in the north.

Little Giant Restaurant Maine

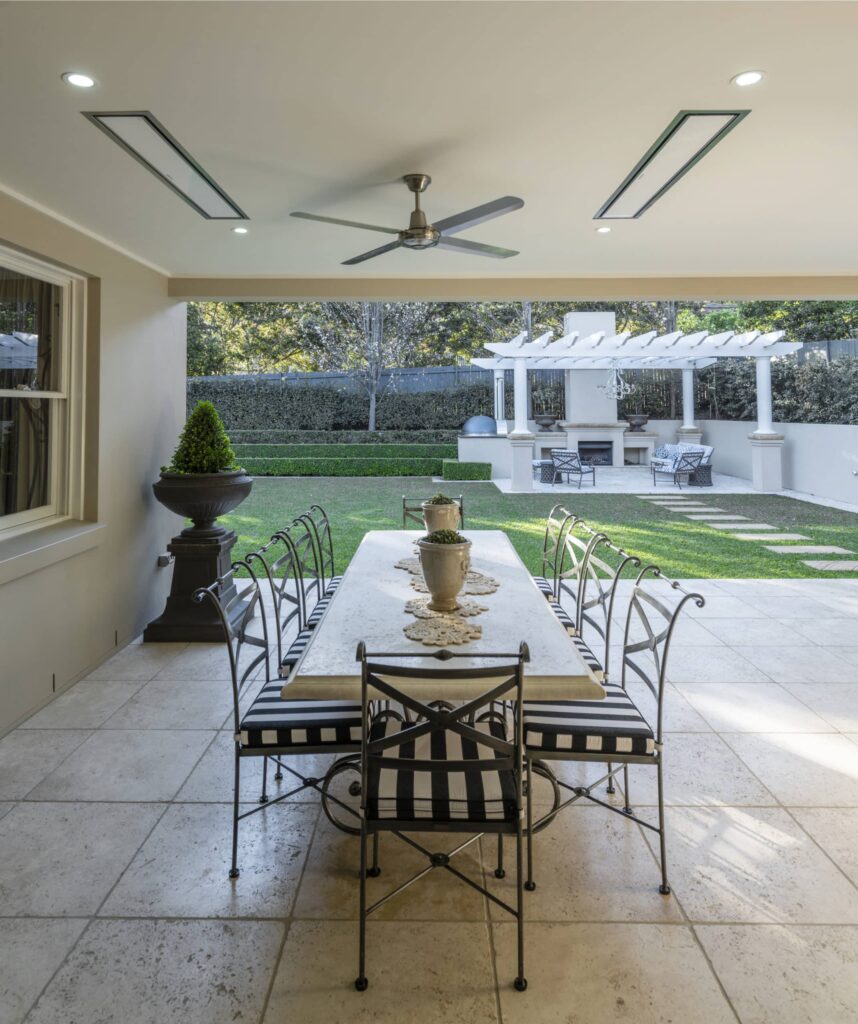

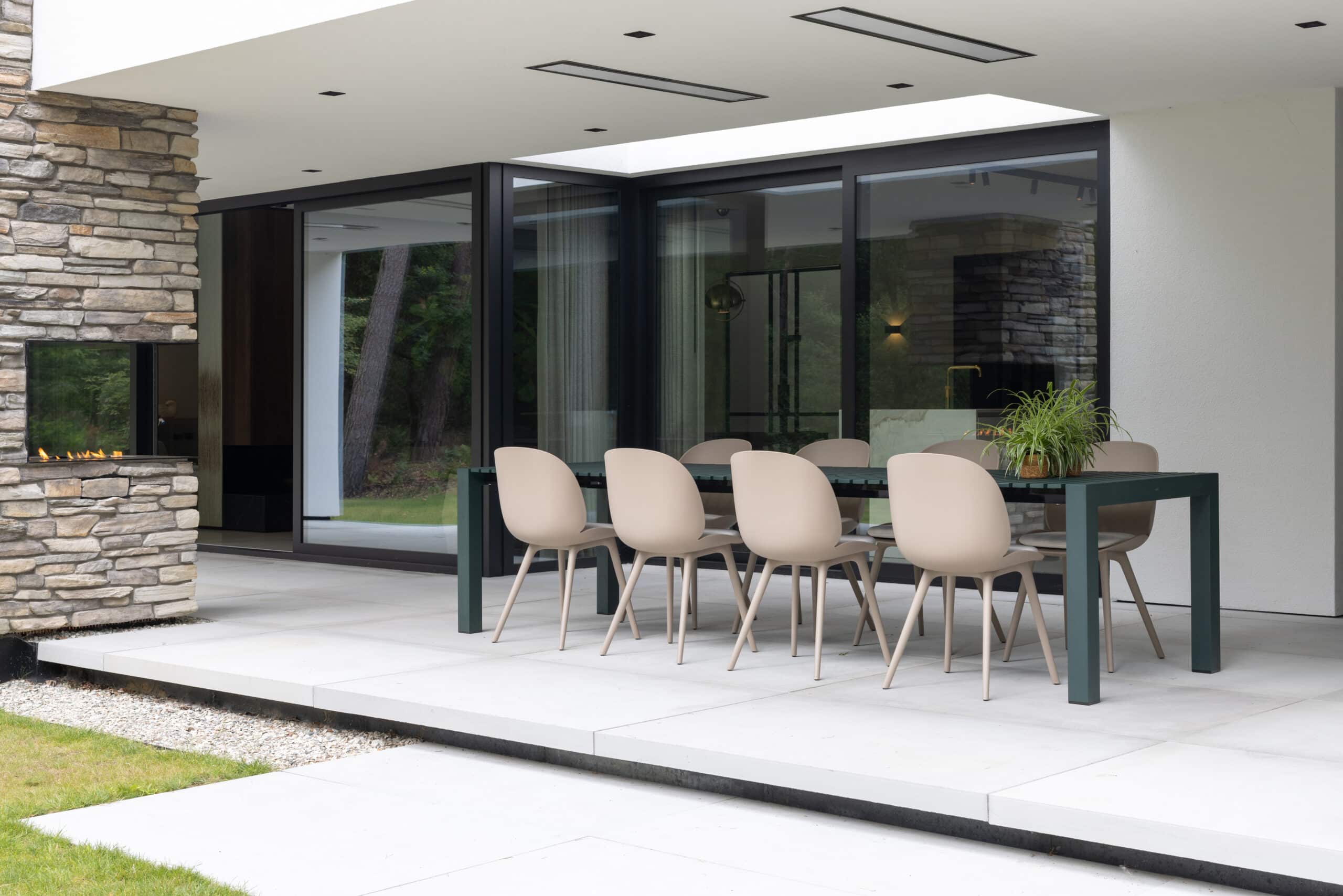

White Recessed Electric Outdoor Heater
★ ★ ★ ★ ★

The heaters were installed a month ago and the results exceed our expectations! They look outstanding, blending into the feel of the porch perfectly.

Michael Zimmerman Minnesota

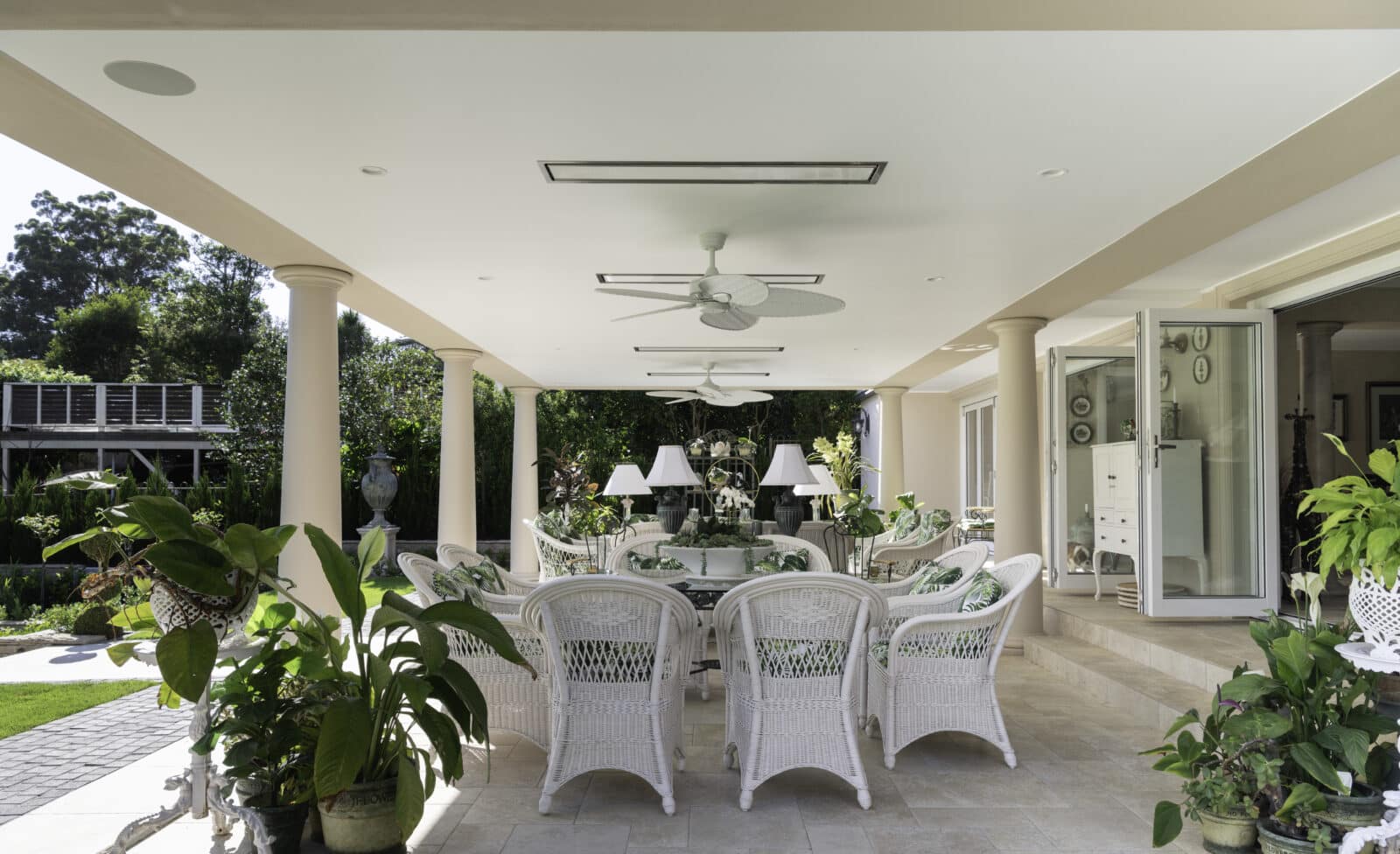

White Recessed Electric Patio Heater
