Affinity Smart-Heat™ On/Off Controllers

Bromic’s best-in-class controls have arrived with our Affinity Smart-Heat™ Collection. The new On/Off series streamlines installation and elevates custom comfort with management through our Bromic Heating App.

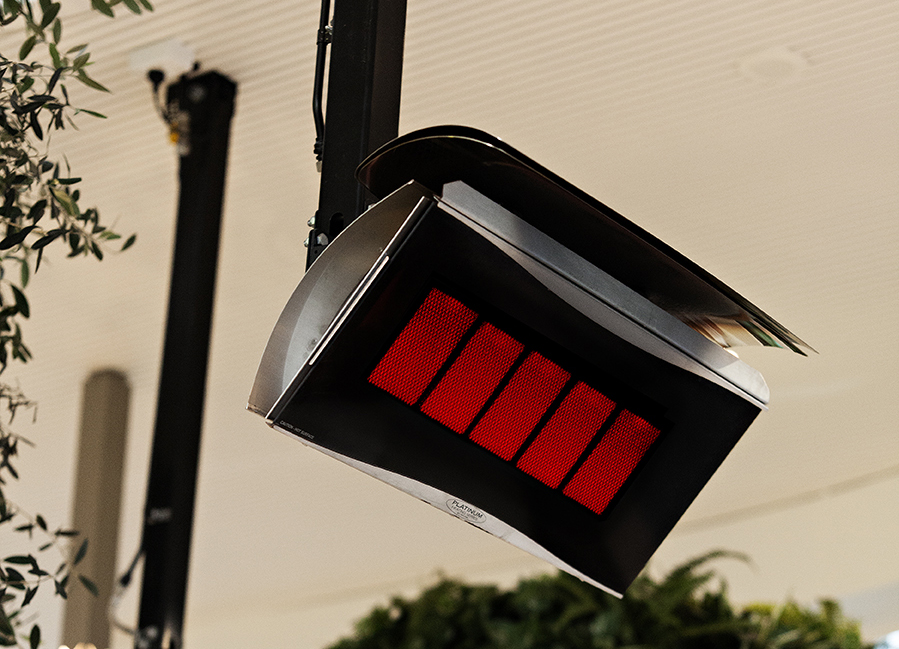

  • Gas or Electric Compatible

    Suitable for our Platinum and Tungsten Collection gas or electric heaters, the On/Off series offers straightforward management now with more control settings than ever to enjoy the comforts of your Bromic heaters.

  • More Channels Than Ever

    The new Affinity On/Off Series is compatible up to 277 volt and comes in available channel options of 1, 2 or 5 – with each channel input controlling up to 6000W of power or 10 gas heaters.

  • WiFi & Bluetooth Enabled

    All controllers within the Affinity Collection are Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.

Affinity Smart-Heat™ On/Off Controllers

$309.00 – $1,750.00

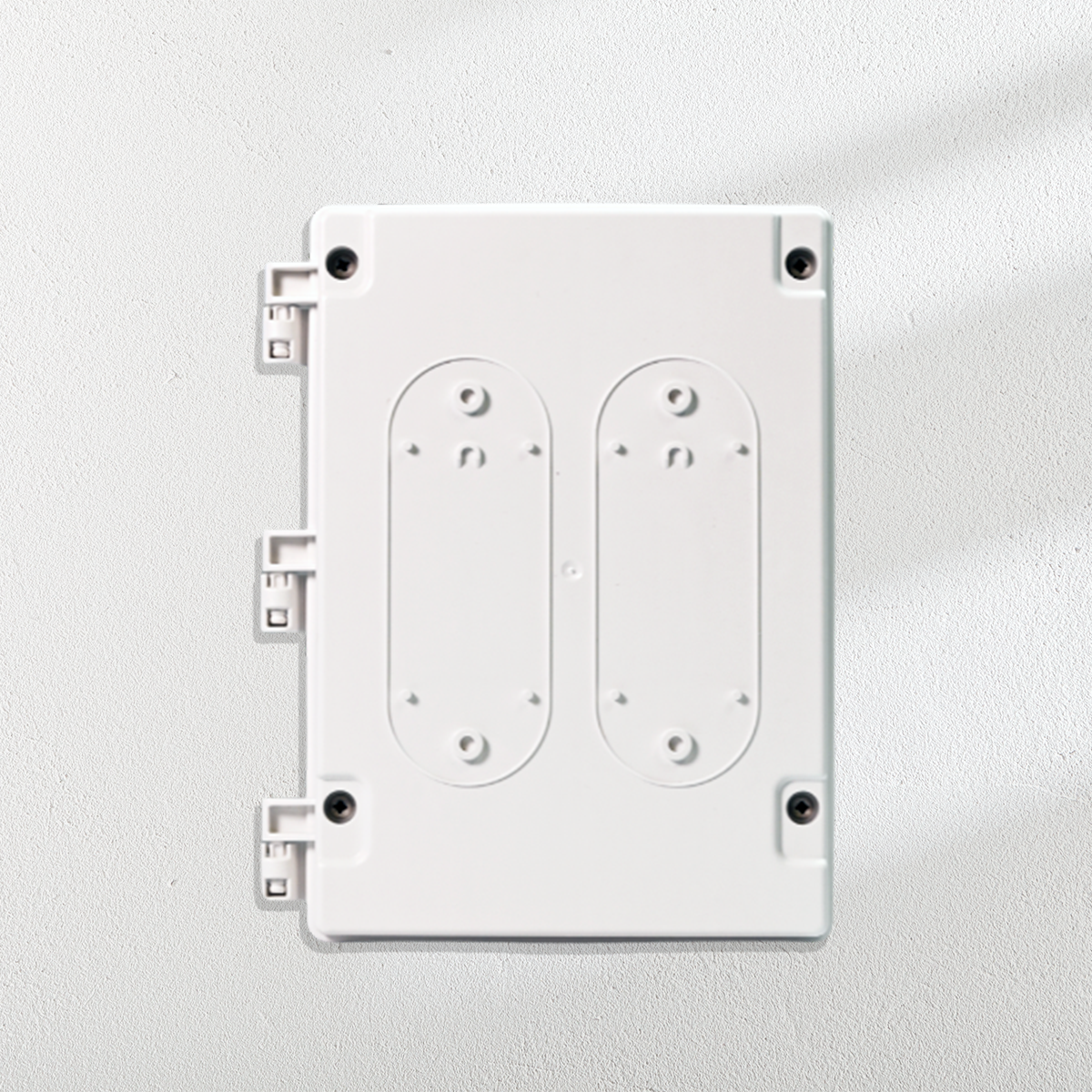

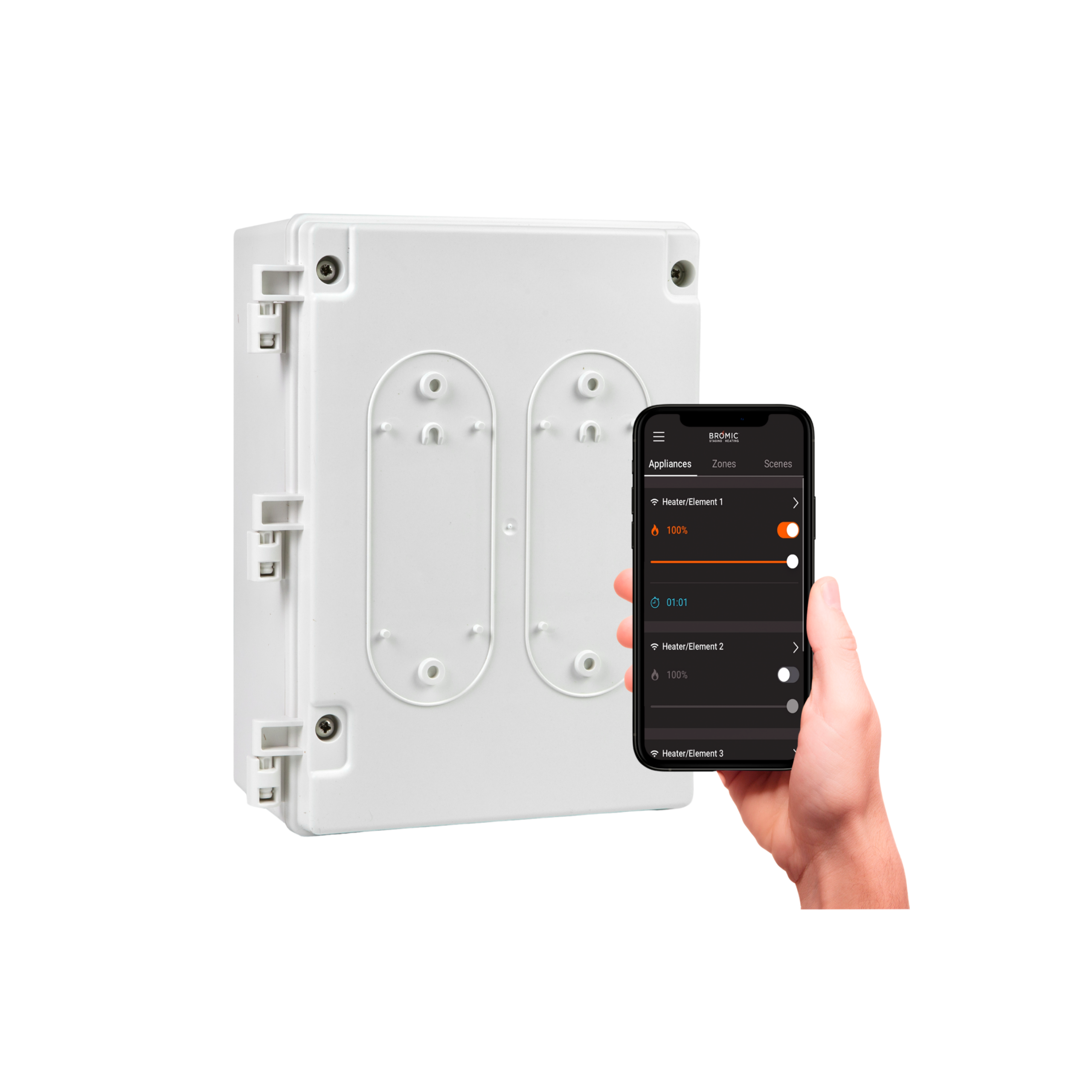

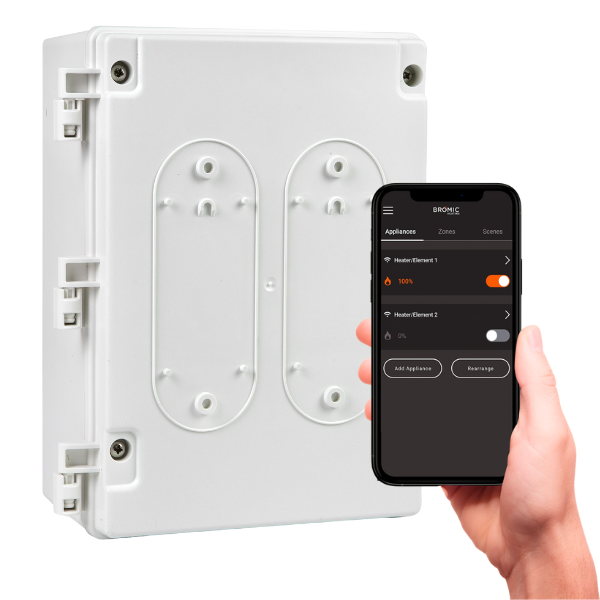

The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

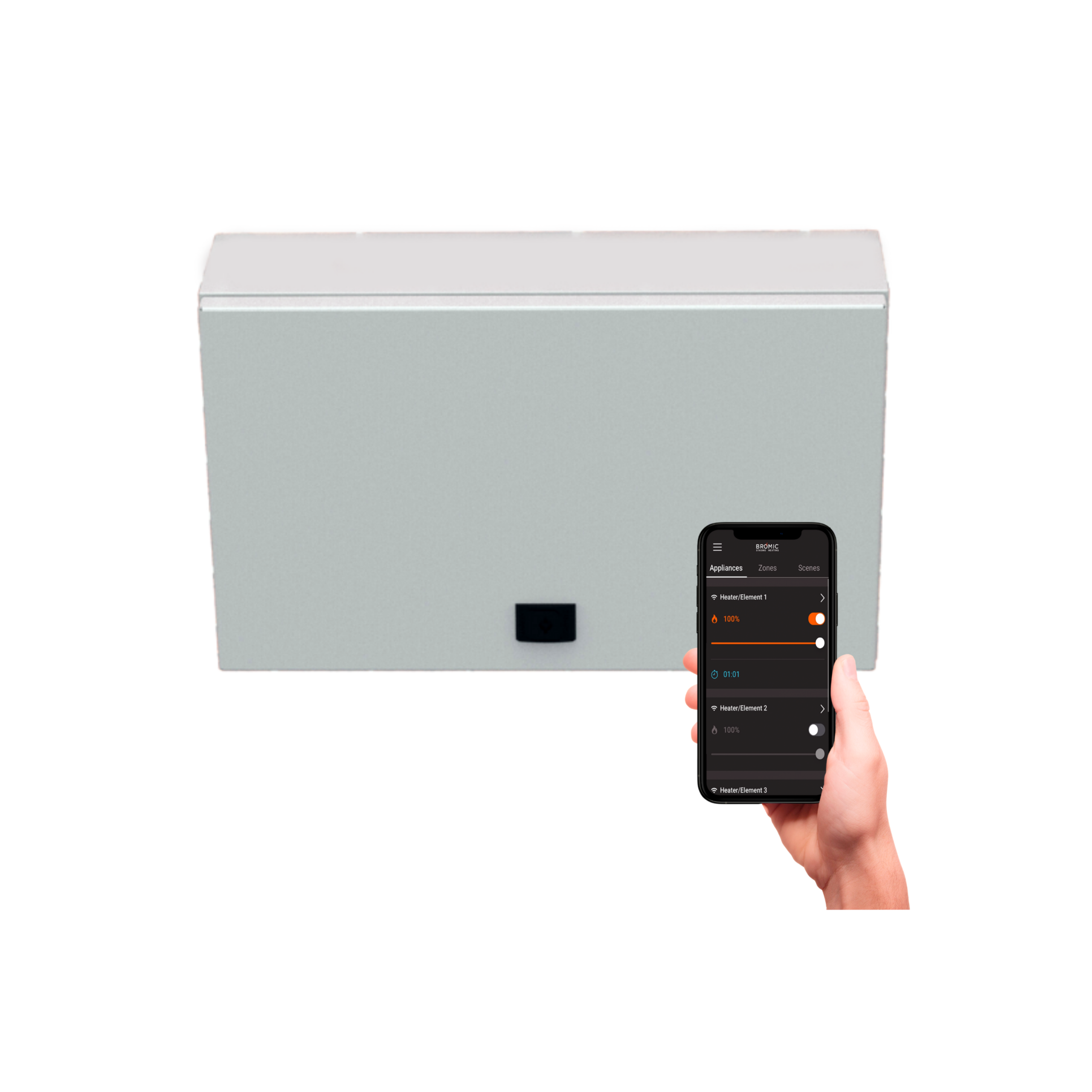

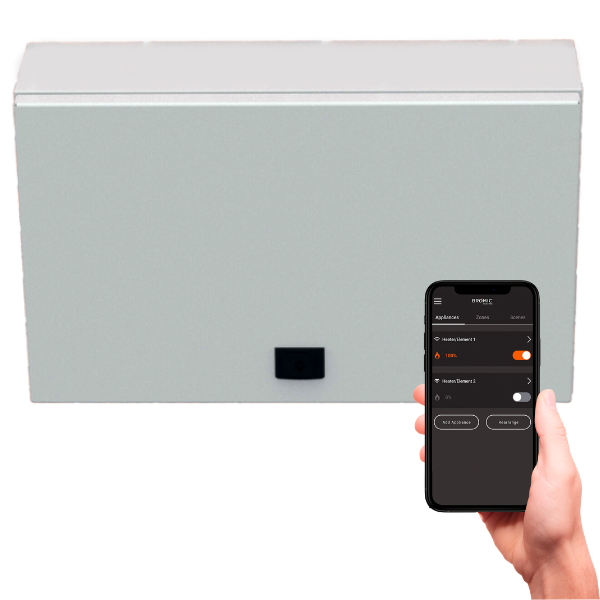

3-Phase 5 Channel model, coming soon, is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.

Affinity Controls On/Off Product Brief Download Full Catalog
SKU: N/A Category:
Talk to Sales
THE AFFINITY DIFFERENCE

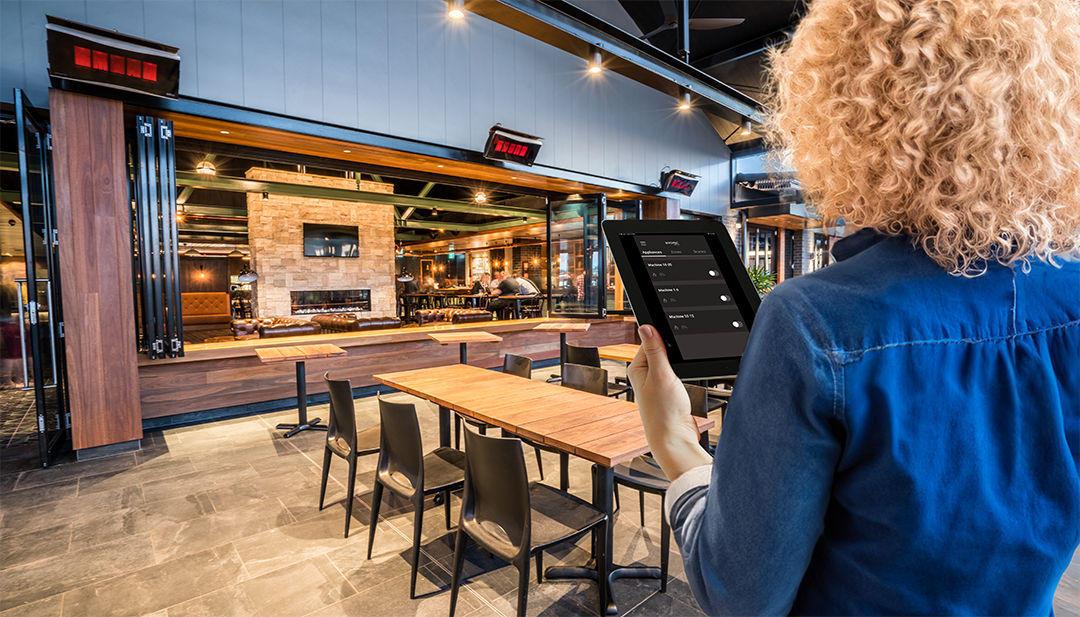

Tap Into Comfort

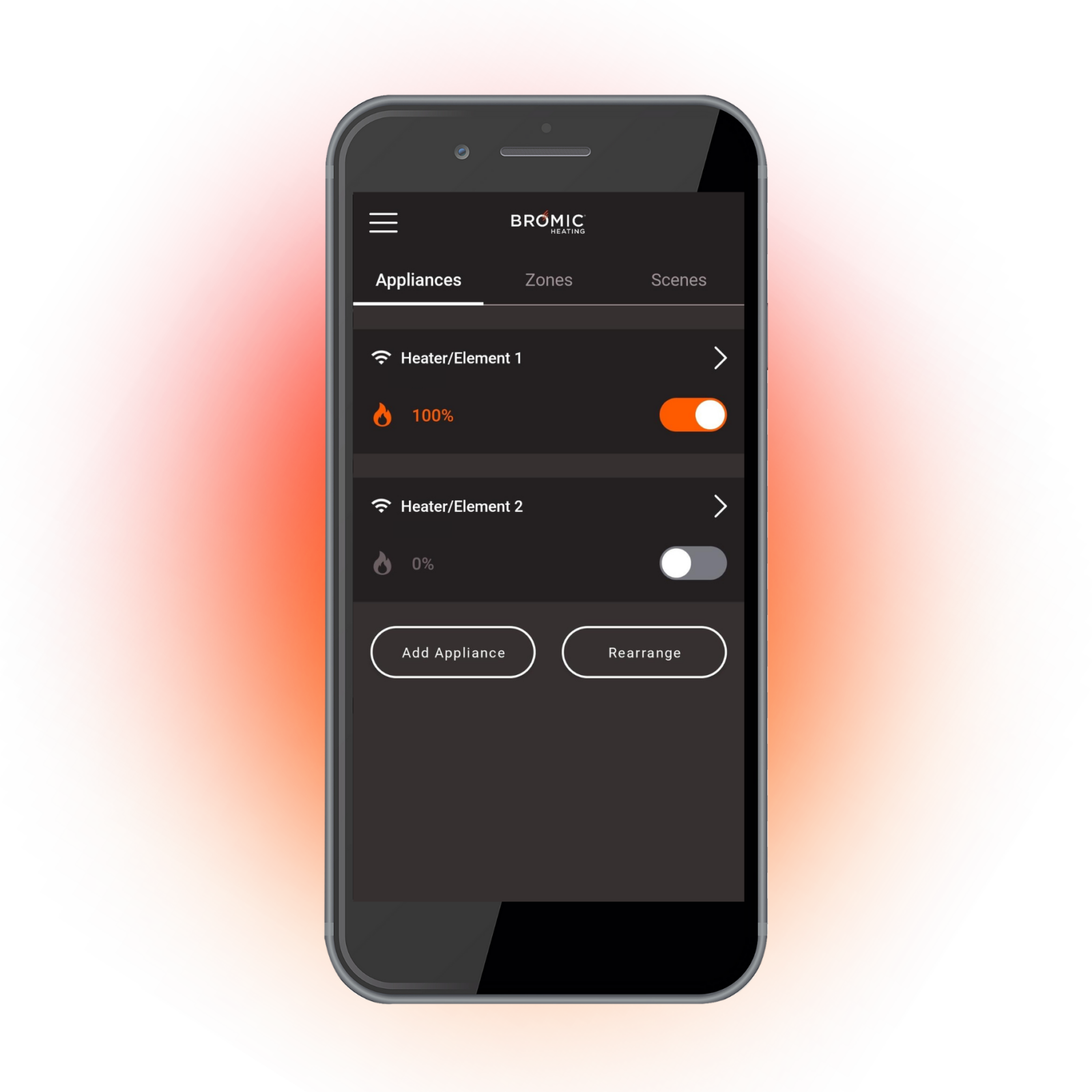

Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wifi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:

  • Complete control of heat output with On/Off and Dimming functionality
  • Multi-heater management of unlimited connected controllers
  • Create heater grouping within zones
  • Timer & schedule settings
  • Voice control integration with Amazon Alexa & Google Home
  • Manage multiple sites from one app
  • Admin control with multi-user management
LEARN MORE

Recommended Controls & Accessories

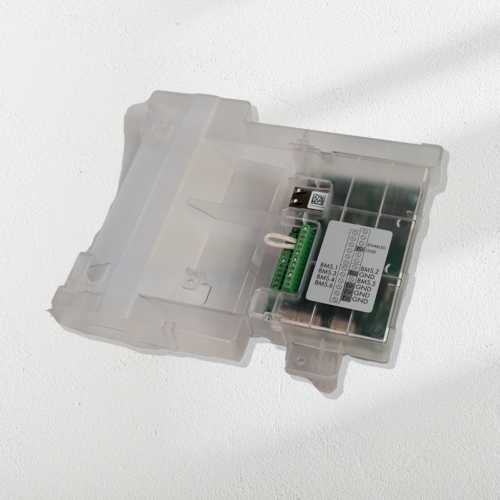

Bromic’s Expansion Board accessory option for the 1 and 2 channel On/Off and Dimmer controls, allows for seamless ethernet integration for a full-proof connection to your outdoor heaters managed via the Bromic Heating app. Additional 0-10V connections allow for seamless plug and play to your Home Automation System or Business Management System.

Product Resources

Specifications

MODEL Smart-Heat Control
On/Off 1 CH		 Smart-Heat Control
On/Off 2 CH		 Smart-Heat Control
On/Off 5 CH
PART NUMBER BH3130051 BH3130052 BH3130053
NUMBER OF CHANNELS 1 2 5
VOLTAGE-MAX CAPACITY PER CHANNEL 100-127V – 1kW
208-277V – 6kW		 100-127V – 1kW
208-277V – 6kW		 3N-220/380V – 6kW
3N-230/400V – 6kW
3N-240/415V – 6kW
3N-277/480V – 6kW
3- 120/208V – 6kW
OPERATING TEMPERATURE RANGE -4°F to +86°F -4°F to +86°F -4°F to +86°F
NON-OPERATING TEMPERATURE RANGE -22°F to +158°F -22°F to +158°F -22°F to +158°F
PROTECTION RATING IP54 IP54 IP54
DIMENSIONS 11.4 x 8.0 x 4.4″ 11.4 x 8.0 x 4.4″ 19.7 x 13.4 x 8.0″
WEIGHT 3.1 lbs 3.6 lbs 24.3 lbs
Downloads

Dimensions

On/Off 1 & 2 Channel Dimensions

On/Off 5 Channel Dimensions

Mounting Options

Clearances

Installation

Downloads

FAQs

What products can be used with the Affinity On/Off control series?

The Affinity On/Off Controls can be used with all Bromic Heating Platinum, Tungsten and Cobalt Electric and Gas Heater models.

How many heaters can I control with this controller?

Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum.  Both Single and Dual Channel options can control multiple heaters within their maximum capacity. Each channel can control up to 10 gas heaters.

  • Examples:
    • A Single 6 kW On/Off Control is compatible with 2 Platinum 2300W Electric Heaters.
    • A Dual 12 kW OnOff Control is compatible with 2 Tungsten 6000W Electric Heaters.
    • A Single 6 kW On/Off Control is compatible with up to 10 Gas Heaters.

Can I control elements individually with the Affinity On/Off control series?

Yes, when using the 12 kW Dual Channel On/Off Control, uses can control the dual elements of these heaters individually:

  • Platinum 4500W
  • Tungsten 4000W, 6000W

Do these controllers have a timer function?

The Bromic App includes both timer/scheduling function.
