Affinity Smart-Heat™ Dimmer Controllers

Bromic’s best-in-class controls have arrived with our Affinity Smart-Heat™ Collection. The new Dimmer series streamlines installation and elevates custom comfort with incremental output management and more game-changing settings through our Bromic Heating App.

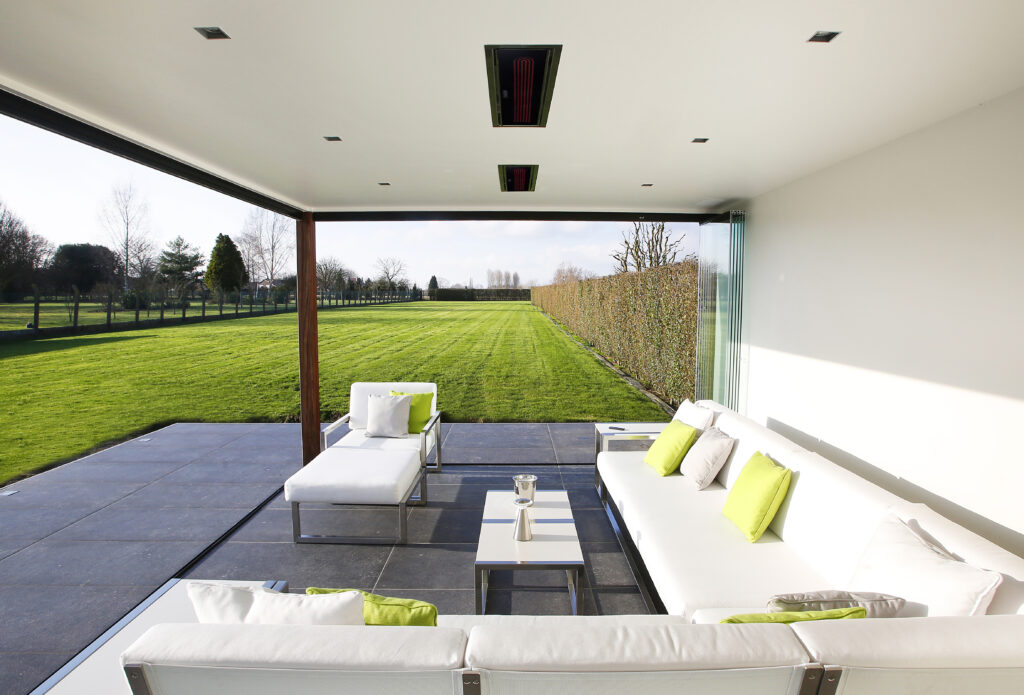

  • The Electric Ideal

    Suitable for our Platinum and Tungsten Collection electric heaters, the Affinity Dimmer Controllers allow for incremental adjustment of heat output for precise control and more settings than ever to enjoy the comforts of your Bromic heaters.

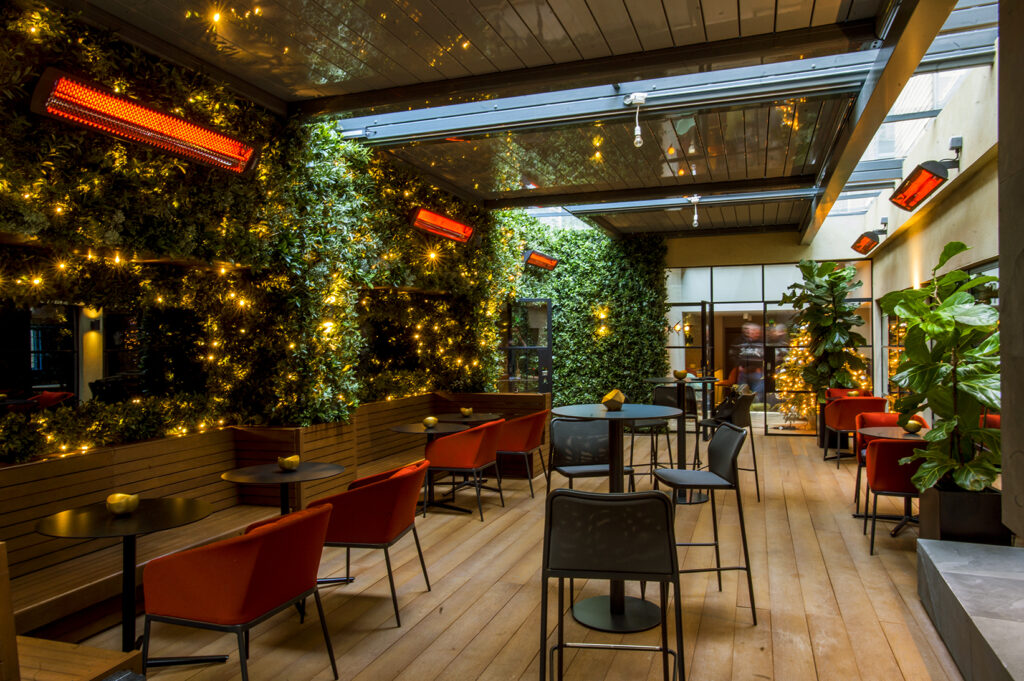

  • More Channels Than Ever

    The new Affinity Dimmer Series is compatible up to 277 volt and comes in available channel options of 1, 2 or 5 – with each channel allowing for up to 6000W.

  • Wi-Fi & Bluetooth Enabled

    All controllers within the Affinity Collection are Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.

Affinity Smart-Heat™ Dimmer Controllers

$649.00 – $3,500.00

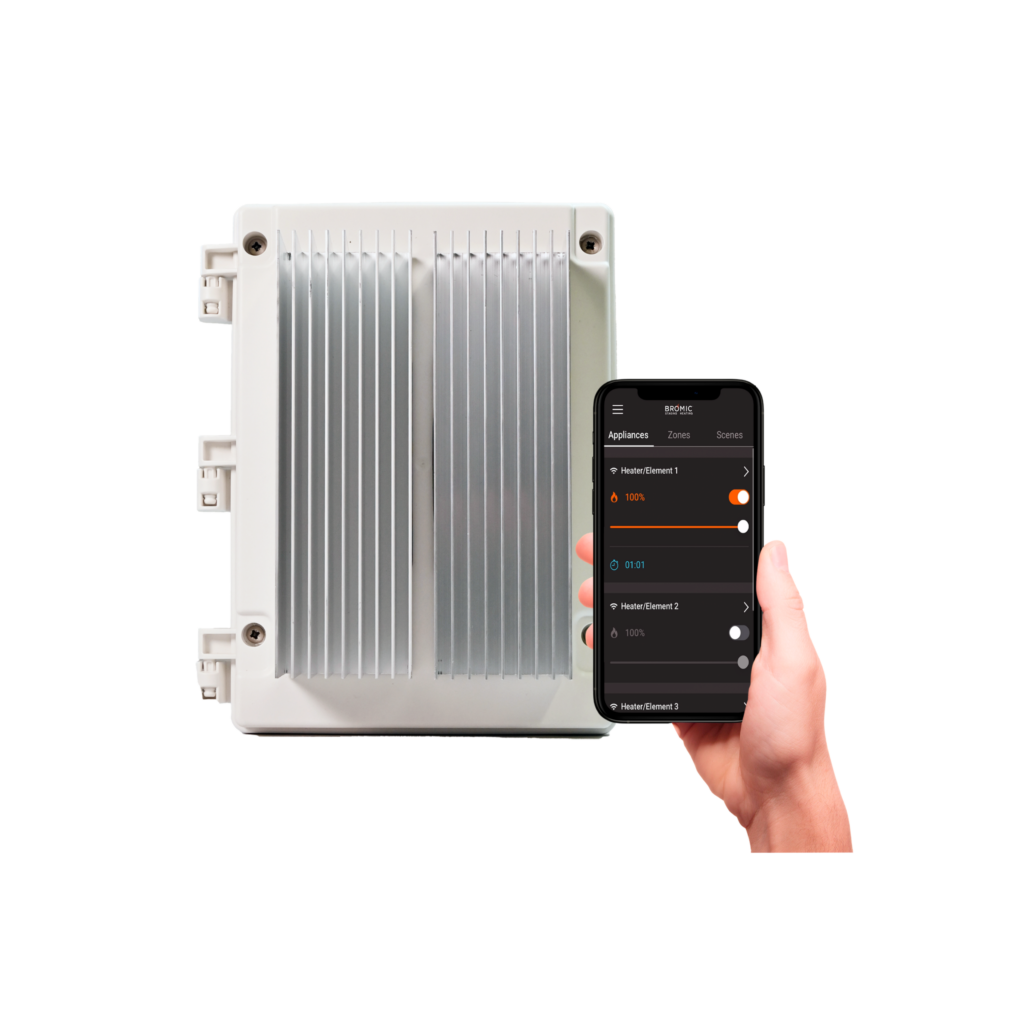

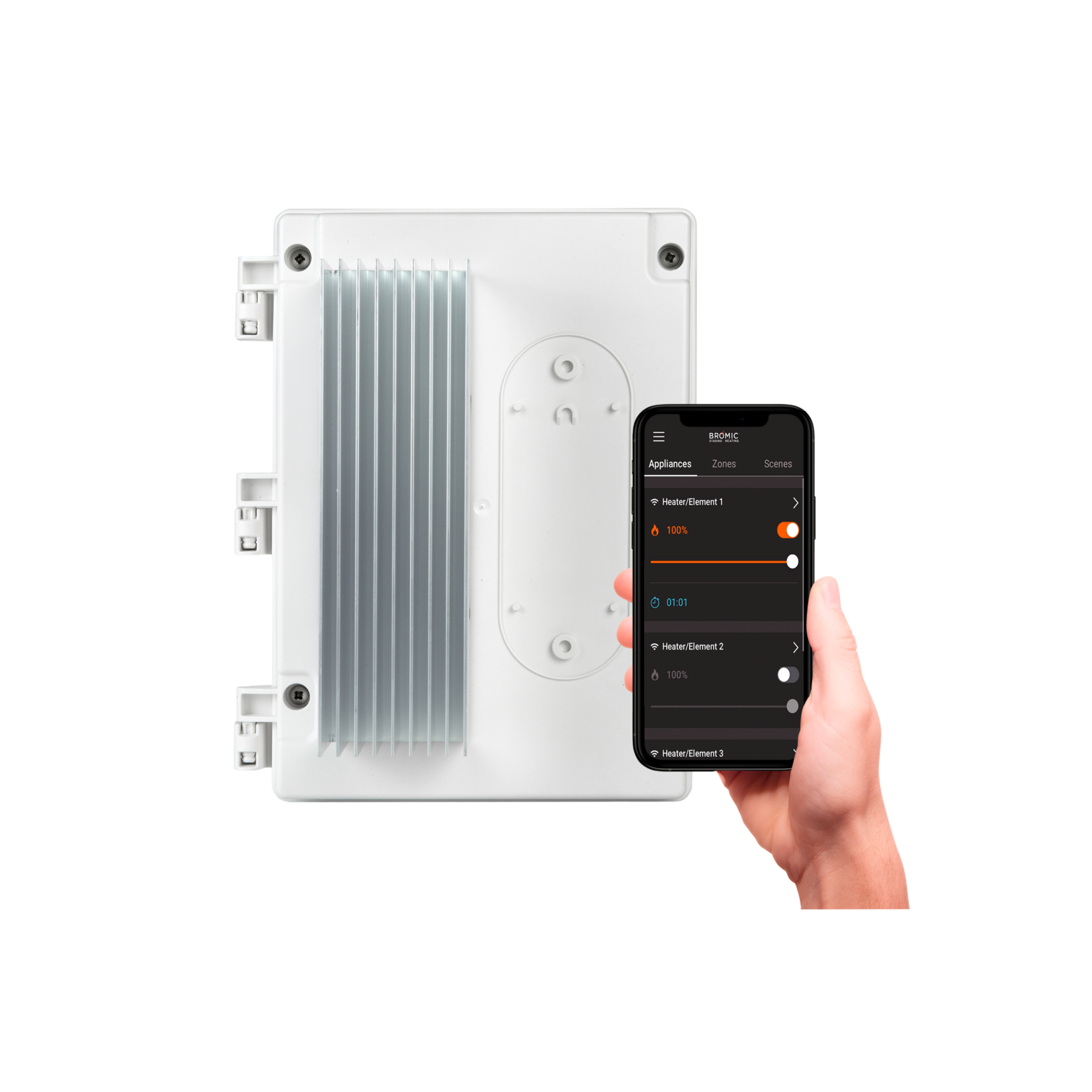

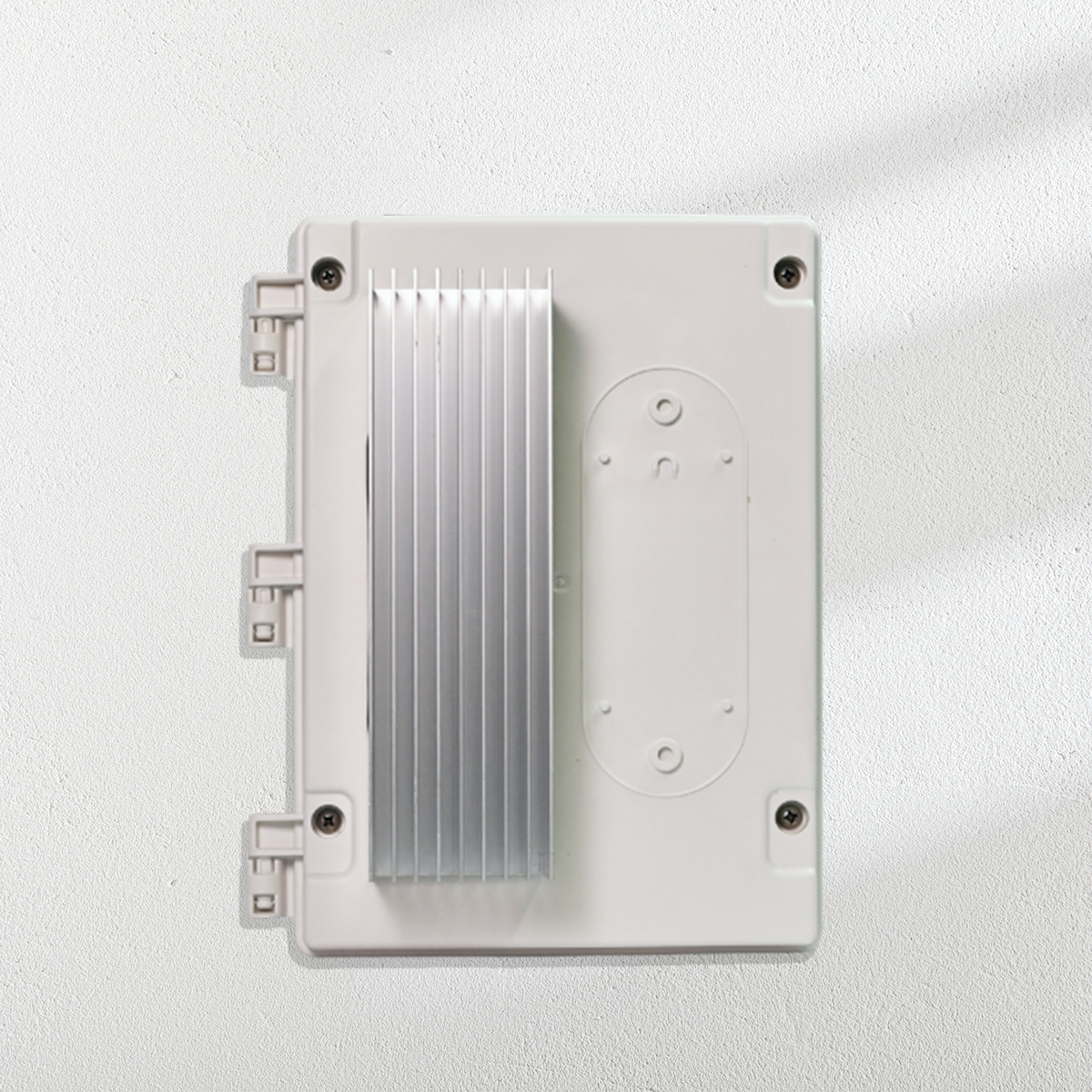

Enjoy custom comfort with the Affinity Dimmer Series. Suitable for Bromic Platinum and Tungsten Collection electric heaters, the Affinity Dimmer Series comes in 1 and 2 channel input options – with each channel controlling up to 6000W of power. Using the Bromic Heating app, instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences.

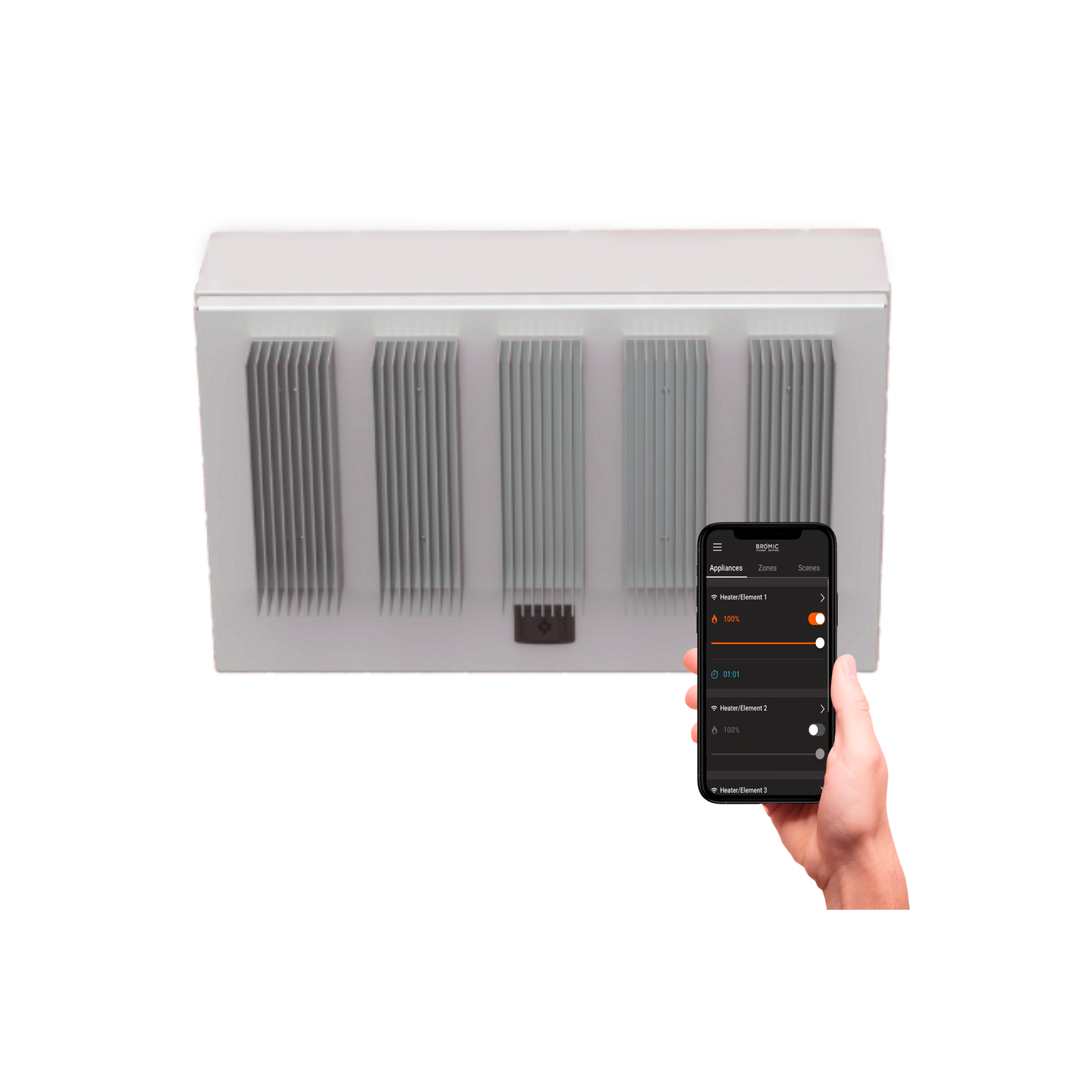

Additional 3-Phase 5 Channel model, coming soon, is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration

Affinity Controls Dimmer Product Brief Download Full Catalog
SKU: N/A Category:
Talk to Sales
THE AFFINITY DIFFERENCE

Tap Into Comfort

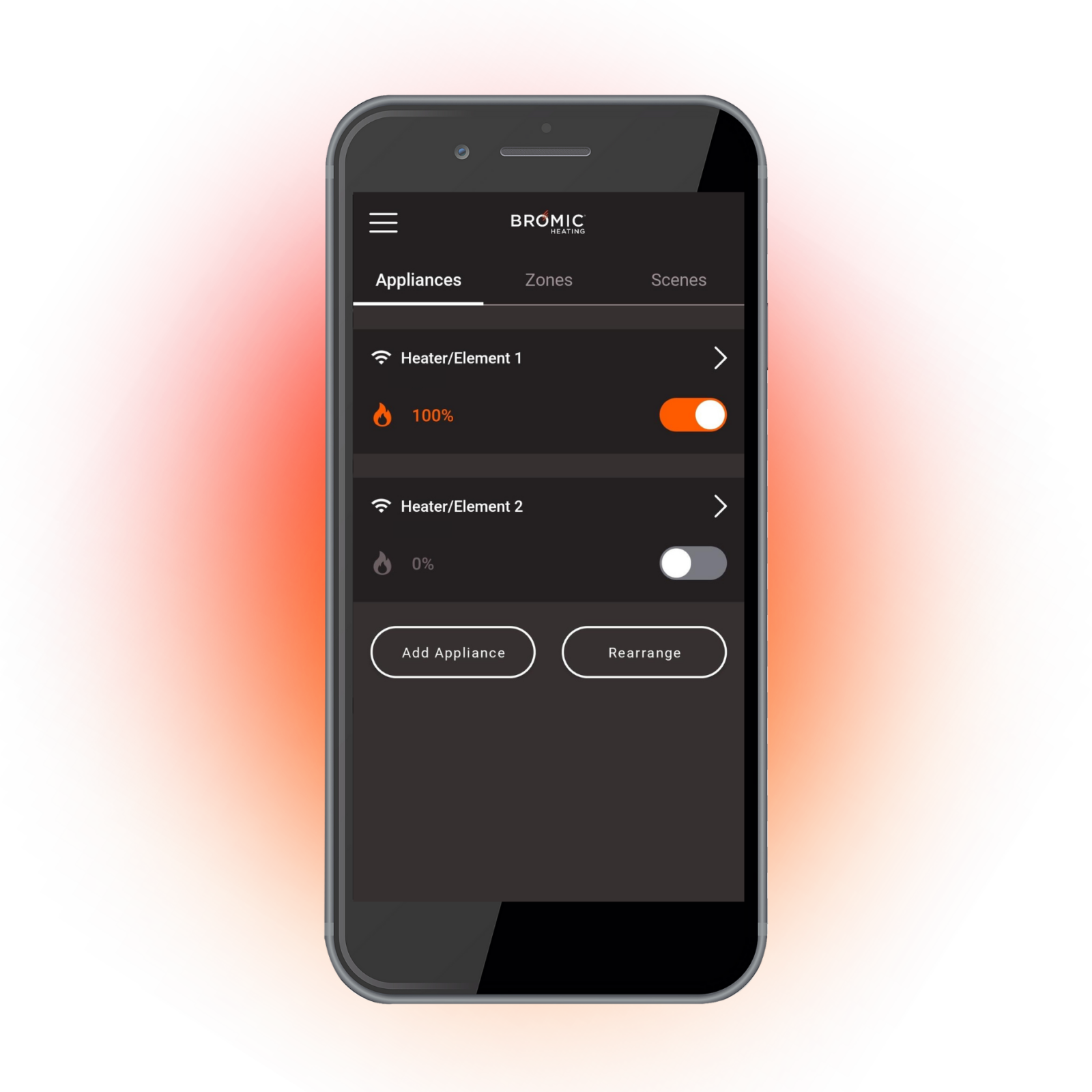

Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wifi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:

  • Complete control of heat output with On/Off and Dimming functionality
  • Multi-heater management of unlimited connected controllers
  • Create heater grouping within zones
  • Timer & schedule settings
  • Voice control integration with Amazon Alexa & Google Home
  • Manage multiple sites from one app
  • Admin control with multi-user management
LEARN MORE

Recommended Controls & Accessories

Bromic’s Expansion Board accessory option for the 1 and 2 channel On/Off and Dimmer controls, allows for seamless ethernet integration for a full-proof connection to your outdoor heaters managed via the Bromic Heating app. Additional 0-10V connections allow for seamless plug and play to your Home Automation System or Business Management System.

Product Resources

Specifications

MODEL Smart-Heat Control
Dimmer 1 CH		 Smart-Heat Control
Dimmer 2 CH		 Smart-Heat Control
Dimmer 5 CH
PART NUMBER BH3130061 BH3130062 BH3130063
NUMBER OF CHANNELS 1 2 5
VOLTAGE-MAX CAPACITY PER CHANNEL 208-277V – 6kW 208-277V – 6kW 3N-220/380V – 6kW
3N-230/400V – 6kW
3N-240/415V – 6kW
3N-277/480V – 6kW
3- 120/208V – 6kW
OPERATING TEMPERATURE RANGE -4°F to +86°F -4°F to +86°F -4°F to +86°F
NON-OPERATING TEMPERATURE RANGE -22°F to +158°F -22°F to +158°F -22°F to +158°F
PROTECTION RATING IP54 IP54 IP54
DIMENSIONS 11.4 x 8.0 x 6.4″ 11.4 x 8.0 x 6.4″ 19.7 x 13.4 x 10.0″
WEIGHT 3.5 lbs 5.3 lbs 27.6 lbs
Downloads

Dimensions

Dimmer 1 & 2 Channel Dimensions

Dimmer 5 Channel Dimensions

Mounting Options

Clearances

Installation

Downloads

FAQs

What products can be used with the Affinity Dimmer control series?

The Affinity Dimer Controls can be used with all Bromic Heating Platinum, Tungsten and Cobalt Electric Heater models. Dimmer controls are not compatible with Gas Heaters.

How many heaters can I control with this controller?

Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum. Both Single and Dual Channel options can control multiple heaters within their maximum capacity.

  • Examples:
    • A Single 6 kW Dimmer Control is compatible with 2 Platinum 2300W Electric Heaters.
    • A Dual 12 kW Dimmer Control is compatible with 2 Tungsten 6000W Electric Heaters.
    • A Single 6 kW Dimmer Control is compatible with up to 10 Gas Heaters.

Can I control elements or heaters individually with the Affinity Dimmer control series?

No, individual element control is unnecessary when using the Dimmer Controls, all elements or individual heaters will be controlled at the same level simultaneously.

Do these controllers have a timer function?

The Bromic App includes both timer/scheduling function.
